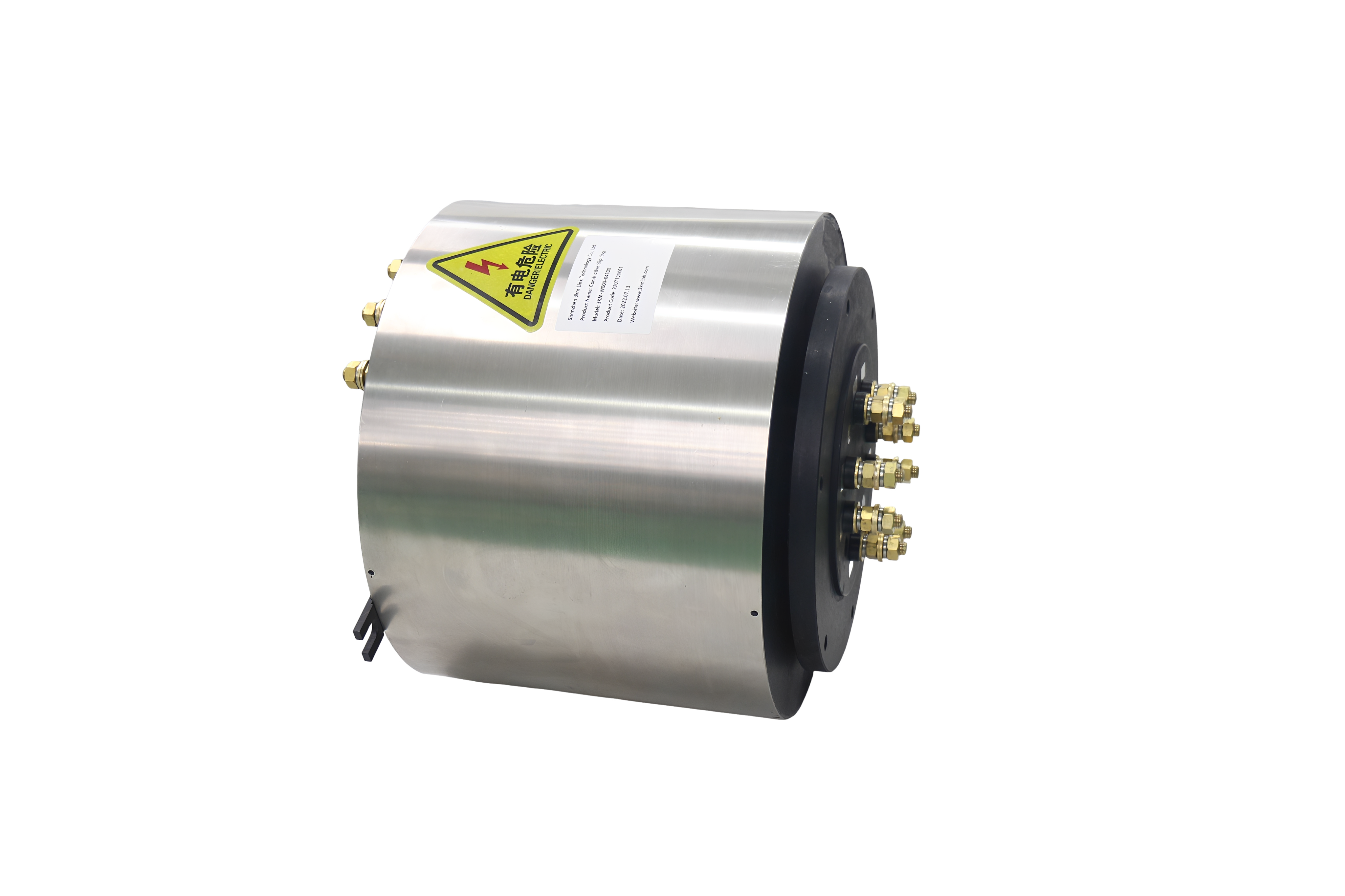

The HW288-P04300 high current non-mercury slip ring features compact size, robust conductivity, high temperature adaptability, and environmental friendliness. It inherits the product characteristics of traditional mercury slip rings while eliminating the environmental concerns associated with mercury. The series represents a high-cost-effective solution small footprint and high-current conductivity.
| Item | Specification |
|---|---|
| Current per circuit | 4 circuits, 300A |
| Cable specifications | M12 terminal blocks |
| Operating voltage | 0–440 V AC/DC |
| Dielectric strength | ≥1000 V @ 50 Hz between circuits |
| Insulation resistance | 500 MΩ @ 800 V DC |
| Dynamic resistance fluctuation | ≤10 mΩ |
| Operating speed | 0–60 rpm |
| Protection rating | IP51 |
| Operating temperature | –20°C to +60°C |
| Operating humidity | ≤80% RH (25°C ±5°C) |
| Contact material | Copper-graphite |
| Housing material | Aluminium alloy + stainless steel |
| Maintenance | Regular maintenance |
To select the suitable HW288-P04300 High Current Non-Mercury Slip Ring, please confirm the following requirements:
Current per circuit and number of circuits
Working voltage and dielectric-strength requirement
Operating speed and expected service life
Protection rating and working environment
Terminal or cable connection method
Installation dimensions and mounting method
Over 80 million revolutions
Environmentally friendly, non-toxic, non-polluting
Compact size, high precision, easy to install
High reliability, stability and cost effectiveness
Automated machinery
Cable reels
Horizontal copper plating production lines
Rotating silver plating production lines
Rotating light boxes
Semiconductor production lines
Heated spinners
Housing Material: Customize the housing material to suit specific environmental or operational requirements
Binding Post Specifications: Tailor the binding post specifications to accommodate different connection needs
Working Speed: Adjust the working speed to meet operational demands, ranging from low-speed to high-speed applications
Working Temperature: Customize the working temperature range to ensure optimal performance in varied environmental conditions, from extreme cold to high heat
If the standard configuration does not fully match your high-power rotary application, send us the required current, circuit count, voltage, speed, protection rating, connection method, installation dimensions, and operating environment. Our engineering team can recommend a suitable model or provide a customized high-current slip ring solution.
