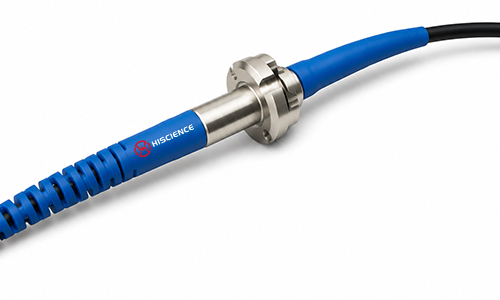

The HSF01G Fiber Optic Slip Ring, also known as an optical slip ring, is a specialized rotating connector designed for uninterrupted 360° rotation and optical signal transmission between stationary and rotating parts.
Unlike traditional electrical slip rings, fiber optic slip rings use non-contact optical signal transmission, helping reduce friction, signal loss, and electromagnetic interference. This design is suitable for high-speed signal transmission, large information capacity, high precision, and long-distance data transmission applications.
The HSF01G supports 1 single-mode fiber channel, with SM G.657.A1 fiber type and 1310/1550nm wavelength range. It features compact structure, low insertion loss, stable optical transmission, and reliable performance in rotating systems.
When combined with electrical slip rings, the HSF01G can form a fiber-electric slip ring system, allowing simultaneous transmission of optical signals, power, electrical signals, and high-speed data according to application requirements.
| Item | Specification |
|---|---|
| Product Type | Fiber Optic Slip Ring / Optical Slip Ring |
| Fiber Type | SM: G.657.A1 |
| Channel Number | 1 channel |
| Wavelength Range | SM: 1310/1550nm |
| Insertion Loss | <3dB |
| Insertion Loss Ripple | ≤0.7dB |
| Bending Radius | >R25 |
| Maximum Speed | 0–1000RPM |
| Working Temperature | -40℃~+85℃ |
| Estimated Life Cycle | 30–50 million revolutions |
| Line Length | ≥1000mm |
| Connector Type | FC / SC / ST / LC, PC or APC |
| Custom Options | Fiber type, channel number, connector type, cable length, service life, shell material, fiber-electric integration |
To select a suitable model, please confirm the following information:
Fiber type, such as single-mode or multi-mode
Number of fiber channels
Wavelength range
Insertion loss requirement
Connector type, such as FC, SC, ST, or LC
Connector polishing type, such as PC or APC
Cable length
Working speed
Installation space
Working temperature and operating environment
Service life requirement
Whether power, signal, data, or fiber-electric integration is required
If you are not sure which model is suitable, please send us your equipment requirements. Our engineers can help recommend a suitable fiber optic slip ring solution.
Designed for uninterrupted 360° optical signal transmission
Supports 1 single-mode fiber channel
SM G.657.A1 fiber type with 1310/1550nm wavelength range
Non-contact optical signal transmission with low friction
Low insertion loss for stable optical performance
Immune to electromagnetic interference
Suitable for high-speed and long-distance data transmission
Compact and lightweight structure for easy integration
Can be combined with electrical slip rings for fiber-electric integrated transmission
Suitable for complex industrial and technological applications
| Application | Typical Use |
|---|---|
| Robots | Used for stable optical signal transmission in robotic rotating joints |
| Material Handling Systems | Supports high-speed signal transmission in rotating material handling equipment |
| Medical Systems | Suitable for medical equipment requiring stable optical signal transfer |
| Remote Control Systems | Used in rotating control systems requiring reliable data transmission |
| Radar Systems | Supports optical signal transmission in radar-related rotating equipment |
| Rotating Turrets on Vehicles | Used for signal transmission in rotating turret structures |
| Video Surveillance Systems | Supports high-speed data transmission in rotating surveillance systems |
| Offshore Equipment | Suitable for offshore rotating systems requiring reliable signal transmission |
| Naval Systems | Used in naval equipment requiring stable optical communication |
| National or International Security Systems | Supports optical signal transmission in security-related systems |
| Submarine Operations Systems | Suitable for underwater operation systems requiring stable data transmission |
Service life
Fiber transmission type
Single-mode or multi-mode fiber
Single-channel or multi-channel configuration
Fiber connector type, such as FC, SC, ST, or LC
PC or APC connector polishing type
Cable length
Shell material
Shape and structure
Drive connector
Power and signal configuration
Fiber-electric integrated slip ring solution
Working speed
Working temperature
Installation structure
Special requirements for harsh operating environments
If the standard model does not meet your requirements, please send us your application details, including fiber type, channel number, wavelength range, insertion loss requirement, connector type, cable length, working speed, installation space, service life requirement, and operating environment.
Our engineers can help confirm the suitable model or provide a customized fiber optic slip ring solution according to your equipment requirements.
