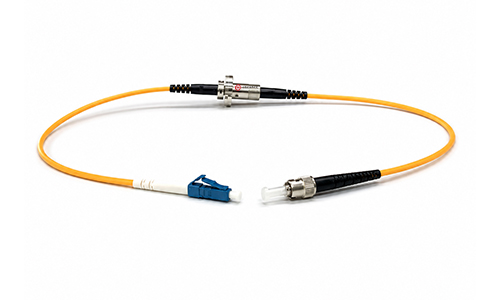

The HF01C-FC001 fiber optic slip ring, also known as an optical slip ring, is a specialized rotating connector designed to enable uninterrupted 360° rotation while transmitting optical energy and signals between stationary and rotating parts.
It supports stable fiber optic signal transmission for applications requiring high-speed data transfer, large information capacity, high precision, and long-distance communication. Unlike traditional electrical slip rings, optical signal transmission is non-contact and non-frictional, which helps reduce wear and extend service life.
With low insertion loss, strong resistance to electromagnetic interference, and a sealed structure, this model is suitable for demanding industrial environments. It can also be integrated with electrical slip rings to form a fiber-electric slip ring solution, supporting both optical signal transmission and power or signal transmission in complex rotating systems
| Item | Specification |
|---|---|
| Product Type | Fiber Optic Slip Ring |
| Fiber Type | Single Mode (9/125μm) |
| Number of Circuits | 1 |
| Wavelength Range | 780–1650nm (Default: 1310nm & 1550nm) |
| Insertion Loss | ≤2.0dB |
| Insertion Loss Variation | ≤±0.25dB |
| Return Loss | ≥45dB |
| Working Temperature | -40°C to +80°C |
| Storage Temperature | -45°C to +85°C |
| Protection Grade | IP64 |
| Housing Material | Stainless Steel SUS304 |
To select a suitable fiber optic slip ring, please confirm the following information:
Fiber type: single-mode or multi-mode
Number of fiber channels
Wavelength range
Connector type
Cable length
Insertion loss requirements
Return loss requirements
Working temperature
Protection grade
Installation space and structure
Whether power, signal, or electrical slip ring integration is required
If you are not sure which model is suitable, please send us your equipment requirements. Our engineers can help recommend a suitable fiber optic slip ring solution.
Uses patented optical coupling technology for stable optical signal transmission
Self-developed simplified coupling process, with no fiber collimators or coaxial adjustment required
One-time assembly design improves production efficiency and ensures a high pass-through rate
Long service life, supporting 200–400 million rotations
Original low-loss optical coupling technology helps minimize signal loss
Sealed structure protects optical components from external environmental factors
Compact and lightweight design for easy integration with electrical slip rings
No leakage and no electromagnetic interference
Suitable for long-distance transmission, from tens to hundreds of kilometers
High-bandwidth transmission capability, with significantly larger bandwidth than electrical connectors
Compatible with wavelength division multiplexers for enhanced bandwidth utilization
| Application | Typical Use |
|---|---|
| Robots | Optical signal transmission in rotating robotic systems |
| Material Handling Systems | Stable data transfer in rotating handling equipment |
| Medical Systems | Signal transmission in precision medical equipment |
| Remote Control Systems | Optical communication in rotating control systems |
| Radar Systems | High-speed signal transmission in radar rotating structures |
| Rotating Turrets on Vehicles | Optical transmission in vehicle-mounted rotating systems |
| Video Surveillance Systems | Stable video or data transmission in rotating monitoring systems |
| Offshore Equipment | Reliable signal transmission in marine and offshore environments |
| Naval Systems | Optical communication in shipborne rotating equipment |
| National or International Security Systems | Signal transmission in security and defense-related systems |
| Submarine Operations Systems | Optical transmission for underwater and subsea rotating systems |
Service life: single mode ≥200 million rotations at 300RPM; multi mode ≥100 million rotations at 300RPM
Fiber transmission types
Number and type of power and signal configurations
Single-mode or multi-mode fiber options
Single-channel or multi-channel configurations
Product shape
Shell material
Drive connector
Fiber connector types, such as FC, LC, PC, ST, etc.
If the standard model does not meet your requirements, please send us your application details, including fiber type, channel number, wavelength range, connector type, cable length, insertion loss requirement, installation space, and working environment.
Our engineers can help confirm the suitable model or provide a customized fiber optic slip ring solution according to your equipment requirements.
