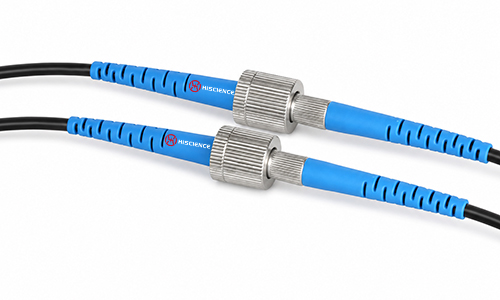

The HF001A fiber optic slip ring, also known as an optical slip ring, is designed to transmit optical signals continuously between stationary and rotating parts during 360° rotation. It is suitable for applications that require stable signal transmission, anti-electromagnetic interference performance, and long-distance optical communication.
This model uses single-mode optical fiber and supports an operating wavelength range of 1310nm to 1550nm. With its compact structure, low insertion loss, and stable rotating performance, it can be used independently or integrated with electrical slip rings to form fiber-electric hybrid transmission solutions for complex rotating systems.
| Item | Specification |
|---|---|
| Product Type | Fiber Optic Slip Ring |
| Fiber Type | Single Mode Optical Fibre |
| Number of Circuits | 1 |
| Operating Wavelength | 1310nm–1550nm |
| Rotating Speed | 0–1000RPM |
| Working Temperature | -40°C to +85°C |
| Insertion Loss | ≤3dB |
| Insertion Loss Variation | ≤0.7dB |
| Bending Radius | >R25 |
| Working Life | 30–50 million turns |
To select a suitable model, please confirm the following information:
Fiber type (single-mode or multi-mode)
Number of fiber channels
Operating wavelength requirements
Rotating speed
Connector type
Cable length requirements
Installation space
Working environment and temperature range
Whether integration with power, signal, or other transmission types is required
If you are not sure which model is suitable, please send us your equipment requirements. Our engineers can help recommend a suitable fiber optic slip ring solution.
Designed for uninterrupted 360° optical signal transmission
Single-mode optical fiber structure for stable and reliable communication
Supports 1310nm–1550nm optical transmission
Low insertion loss and stable insertion loss variation
Resistant to electromagnetic interference and signal leakage
Compact and lightweight structure for easy equipment integration
Suitable for long-distance and high-bandwidth signal transmission
Can be integrated with electrical slip rings for hybrid transmission solutions
| Application | Typical Use |
|---|---|
| Robots | Optical signal transmission in rotating robotic systems |
| Material Handling Systems | Stable data transfer in rotating handling equipment |
| Medical Systems | Signal transmission in precision medical devices |
| Remote Control Systems | Reliable optical communication in rotating control equipment |
| Radar Systems | High-speed optical transmission in radar rotating assemblies |
| Rotating Turrets on Vehicles | Stable optical signal transfer in rotating vehicle systems |
| Video Surveillance Systems | Continuous signal transmission in rotating monitoring devices |
| Offshore Equipment | Optical communication in harsh marine environments |
| Naval Systems | Reliable transmission in shipborne rotating systems |
| National or International Security Systems | Signal transmission in defense and security equipment |
| Submarine Operations Systems | Optical transmission in underwater and subsea rotating systems |
Service life requirements
Fiber transmission type
Number of fiber channels
Single-mode or multi-mode configuration
Power and signal integration requirements
Connector type, such as FC, LC, PC, or ST
Product shape and shell material
Drive connector type
Cable length requirements
If the standard model does not meet your requirements, please send us your application details, including fiber type, channel number, wavelength, rotating speed, connector type, cable length, installation space, and working environment.
Our engineers can help confirm the suitable model or provide a customized fiber optic slip ring solution according to your equipment requirements.
