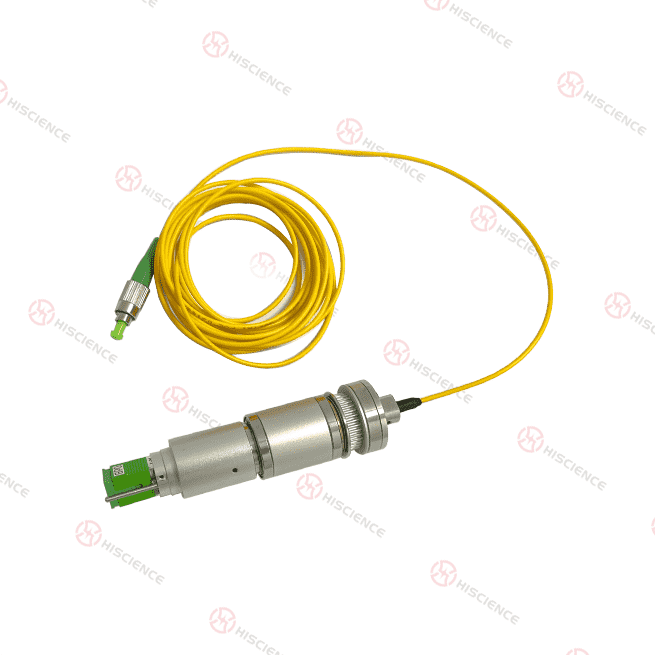

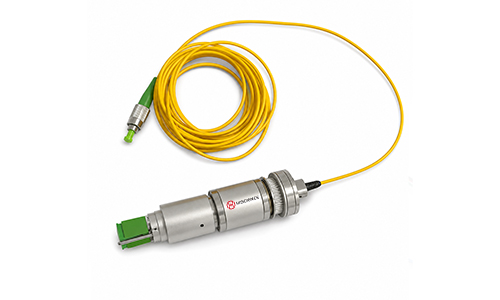

The HSF01D-001 fiber optic slip ring, also known as an optical slip ring, is a specialized rotating connector designed to enable uninterrupted 360° rotation while transmitting optical energy and signals between stationary and rotating parts.
It supports SMF-28 fiber and 1310nm/1550nm optical wavelength transmission, making it suitable for applications requiring high-speed signals, large information capacity, high precision, and long-distance communication. Compared with traditional electrical slip rings, fiber optic signal transmission is non-contact and non-frictional, helping reduce wear and improve long-term transmission stability.
With low insertion loss, high rotating speed, strong vibration resistance, and reliable optical performance, this model is suitable for rotating systems used in industrial automation, robots, medical systems, radar systems, remote control systems, video surveillance systems, offshore equipment, naval systems, and other high-speed communication applications.
| Item | Specification |
|---|---|
| Product Type | Fiber Optic Slip Ring |
| Fiber Type | SMF-28 |
| Number of Circuits | 1 |
| Working Life | ≥200 million rotations |
| Operating Wavelength | 1310nm / 1550nm |
| Moving Noise | ＜75 / 12000RPM |
| Insertion Loss | ＜1.2dB |
| Vibration Standard | MIL-STD-167-1A |
| Insertion Loss Variation | ＜0.5dB |
| Protection Grade | IP54 |
| Max. Optical Power | 23dBm |
| Max. Rotating Speed | 12000RPM |
| Working Temperature | -40°C to +85°C |
| Storage Temperature | -50°C to +85°C |
| Housing Type | 2mm |
To select a suitable fiber optic slip ring, please confirm the following information:
Fiber type
Number of fiber channels
Operating wavelength
Insertion loss requirement
Insertion loss variation requirement
Maximum rotating speed
Working life requirement
Protection grade
Vibration or shock resistance requirement
Working temperature and storage temperature
Cable length and connector type
Installation space and structure
Whether electrical signal, power, or hybrid integration is required
If you are not sure which model is suitable, please send us your equipment requirements. Our engineers can help recommend a suitable fiber optic slip ring solution.
Supports SMF-28 single-mode fiber transmission
Designed for stable 360° optical signal transmission
Low insertion loss, with insertion loss ＜1.2dB
Insertion loss variation ＜0.5dB for stable optical performance
Supports 1310nm / 1550nm operating wavelength
Maximum rotating speed up to 12000RPM
Long service life, supporting ≥200 million rotations
IP54 protection grade for reliable use in industrial environments
Meets MIL-STD-167-1A vibration standard
Supports maximum optical power of 23dBm
Non-contact optical transmission helps reduce wear and improve stability
Strong resistance to electromagnetic interference
Suitable for high-speed and long-distance optical signal transmission
| Application | Typical Use |
|---|---|
| Robots | Optical signal transmission in rotating robotic systems |
| Material Handling Systems | Stable data transfer in rotating handling equipment |
| Medical Systems | Signal transmission in precision medical equipment |
| Remote Control Systems | Optical communication in rotating control systems |
| Radar Systems | High-speed signal transmission in rotating radar structures |
| Rotating Turrets on Vehicles | Optical transmission in vehicle-mounted rotating systems |
| Video Surveillance Systems | Stable video or data transmission in rotating monitoring systems |
| Offshore Equipment | Reliable signal transmission in marine and offshore environments |
| Naval Systems | Optical communication in shipborne rotating equipment |
| National or International Security Systems | Signal transmission in security-related rotating systems |
| Submarine Operations Systems | Optical transmission for underwater and subsea rotating systems |
Service life
Fiber transmission type
Single-mode or multi-mode fiber
Single-channel or multi-channel configurations
Operating wavelength
Insertion loss requirement
Insertion loss variation requirement
Rotating speed
Protection grade
Cable length
Connector type
Housing structure
Working temperature range
Vibration-resistant or special environment requirements
Integration with electrical signal, power, or other hybrid transmission requirements
If the standard model does not meet your requirements, please send us your application details, including fiber type, channel number, wavelength, insertion loss requirement, rotating speed, protection grade, cable length, connector type, installation space, vibration requirement, and working environment.
Our engineers can help confirm the suitable model or provide a customized fiber optic slip ring solution according to your equipment requirements.
Get a Quote
Download Datasheet

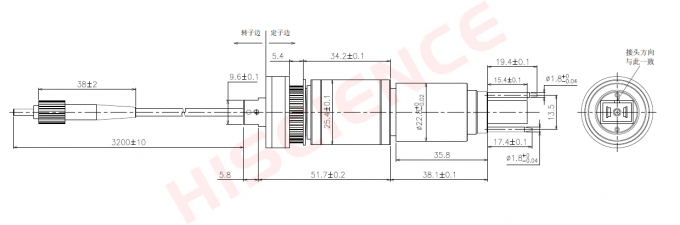

Request Drawing / 3D Model
