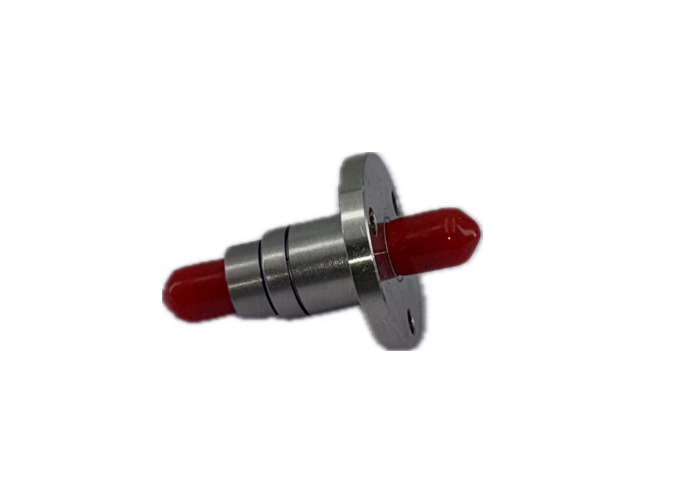

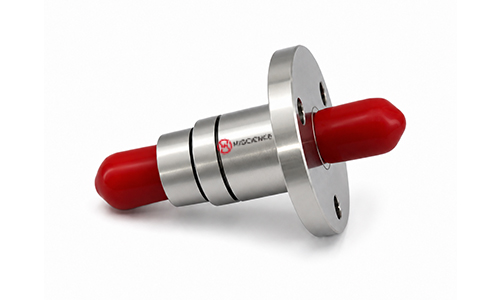

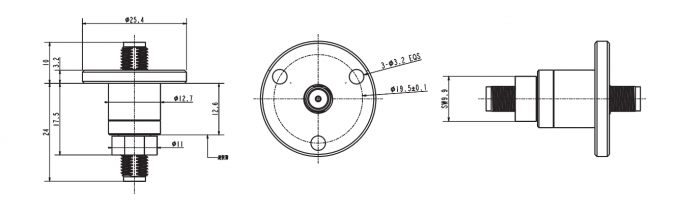

The HRJ100 RF slip ring is designed for rotating systems that require stable RF signal transmission during continuous 360° rotation. It can transmit RF signals, high-frequency signals, microwave signals, analog signals, and digital signals.
This model features 1 RF channel with SMA-F interface and a frequency range of DC–18GHz. It provides stable VSWR performance, low insertion loss, strong shielding effectiveness, and excellent anti-interference capability, making it suitable for high-frequency communication and high-speed data transmission applications.
The HRJ100 RF slip ring can also be combined with power circuits, control signals, communication signals, and other transmission requirements according to the application. It is suitable for radar antennas, satellite communication systems, remote control systems, video surveillance systems, medical systems, robots, and other equipment that requires stable RF signal transmission during rotation.
| Item | Specification |
|---|---|
| Product Type | RF Slip Ring |
| Model | HRJ100 |
| No. of Circuits | 1 |
| Interface Type | SMA-F |
| Frequency Range | DC–18GHz |
| Peak Power | 2 kW |
| Average Power | 100 W |
| VSWR | 1.25 |
| VSWR Variation | 0.05 |
| Insertion Loss | 0.5 dB |
| Insertion Loss Variation | 0.1 dB |
| Working Speed | 0–300RPM |
| Transmission Type | RF signal / High-frequency signal / Microwave signal |
| Custom Options | RF channels, frequency range, interface type, power and signal circuits |
To select a suitable RF slip ring, please confirm the following information:
RF channel quantity
Frequency range
Interface type, such as SMA, N-type, BNC, TNC, etc.
Peak power and average power requirements
VSWR requirement
Insertion loss requirement
Working speed
Installation space and mounting method
Whether power circuits or signal circuits need to be integrated
Whether video, Ethernet, control signal, or fluid media transmission is required
Operating environment and protection requirements
If you are not sure which RF slip ring is suitable, please send us your frequency range, RF channel quantity, interface type, power requirement, installation space, and application details. Our engineers can help recommend a suitable RF slip ring solution.
Supports continuous 360° RF signal transmission
1 RF channel with SMA-F interface
Frequency range: DC–18GHz
Stable VSWR performance for reliable signal transmission
Low insertion loss and low transmission fluctuation
Suitable for high-capacity data transmission with no delay
Supports high-speed transmission of ultra-high-definition video data
Compact structure and easy integration into rotating equipment
Strong shielding and anti-interference capability
Can be combined with power circuits, control signals, communication signals, and fluid media transmission
Customizable RF channels, frequency range, interface type, and integrated transmission structure
| Application | Typical Use |
|---|---|
| Radar Antennas | Used for RF and microwave signal transmission in rotating radar systems |
| Satellite Communication Systems | Supports stable RF signal transmission in satellite communication equipment |
| Shipborne Satellite Communication Systems | Suitable for marine antenna systems requiring stable high-frequency transmission |
| Vehicle-mounted Satellite Communication Equipment | Used in rotating communication systems installed on vehicles |
| Satellite Communication Vehicles | Supports RF signal transmission in mobile communication platforms |
| Emergency Command Vehicles | Used in rotating antenna, monitoring, or communication systems |
| Remote Control Systems | Transfers high-frequency control and communication signals during rotation |
| Video Surveillance Systems | Suitable for rotating monitoring systems requiring stable data transmission |
| Medical Systems | Used in precision medical equipment requiring RF or signal transmission |
| High-end Robots | Supports signal transmission in robotic joints or rotating systems |
| Rotating Turrets on Vehicles | Used for RF and signal transmission in rotating vehicle-mounted equipment |
| Security Systems | Suitable for rotating communication, monitoring, or antenna equipment |
| Subsea Operation Systems | Supports reliable signal transmission in underwater rotating systems |
| Emergency Lighting Equipment | Used in rotating lighting systems requiring signal transmission |
| Exhibition and Display Equipment | Supports rotating display equipment with RF or signal transmission requirements |
RF channel quantity
Frequency range up to 50GHz
Interface type
Peak power and average power
VSWR requirement
Insertion loss requirement
Working speed
Installation structure
Power circuit integration
Signal circuit integration
Ethernet, video, control signal, or communication signal transmission
Fluid media integration
Connector type and cable length
Long service life and maintenance-free operation
If the standard HRJ100 model does not meet your requirements, please send us your application details, including RF channel number, frequency range, interface type, peak power, average power, VSWR requirement, insertion loss requirement, installation space, working speed, and operating environment.
Our engineers can help confirm the suitable model or provide a customized RF slip ring solution according to your equipment requirements.
