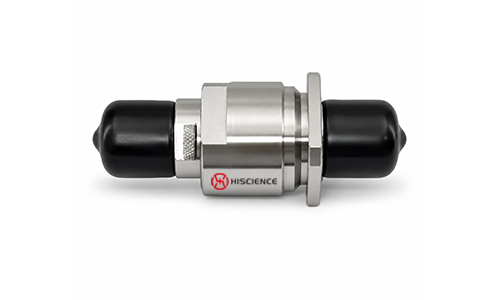

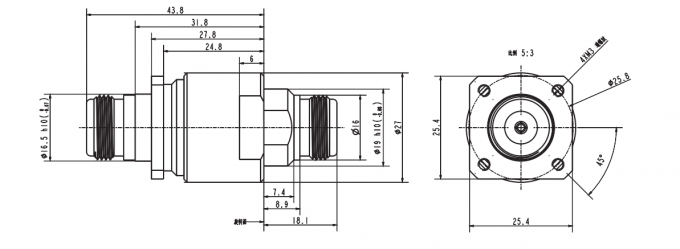

The HRJ100-02 RF slip ring is designed for rotating systems that require stable RF signal transmission during continuous 360° rotation. It supports high-frequency signals, microwave signals, RF signals, analog signals, and digital signals.
This model features 1 RF channel with SMA-F interface and a frequency range of DC–18GHz. It provides stable VSWR performance, low insertion loss, and strong anti-interference capability, making it suitable for high-speed data transmission and high-frequency communication systems.
RF slip rings can also be combined with power circuits, control signals, communication signals, and fluid media transmission according to application requirements. This series is suitable for satellite communication systems, radar antennas, remote control systems, video surveillance systems, medical equipment, robots, and other rotating systems that require reliable high-frequency signal transmission.
| Item | Specification |
|---|---|
| Product Type | RF Slip Ring |
| Model | HRJ100-02 |
| RF Channels | 1 channel |
| Interface Type | SMA-F |
| Frequency Range | DC–18GHz |
| Peak Power | 2 kW |
| Average Power | 100 W |
| VSWR | 1.25 |
| VSWR Variation | 0.05 |
| Insertion Loss | 0.5 dB |
| Insertion Loss Variation | 0.1 dB |
| Working Speed | 0–300RPM |
| Transmission Type | RF signal / High-frequency signal / Microwave signal |
| Custom Options | RF channels, frequency range, interface type, power and signal circuits |
To select a suitable RF slip ring, please confirm the following information:
Number of RF channels
Frequency range
Interface type, such as SMA, N-type, BNC, TNC, etc.
Peak power and average power requirements
VSWR requirement
Insertion loss requirement
Working speed
Installation space and mounting method
Whether power circuits or signal circuits need to be integrated
Whether video, Ethernet, control signal, or fluid media transmission is required
Operating environment and protection requirements
If you are not sure which RF slip ring is suitable, please send us your frequency range, RF channel number, interface type, power requirement, installation space, and application details. Our engineers can help recommend a suitable RF slip ring solution.
Supports continuous 360° RF signal transmission
1 RF channel with SMA-F interface
Frequency range: DC–18GHz
Stable VSWR performance for reliable signal transmission
Low insertion loss and low transmission fluctuation
Suitable for high-capacity data transmission with no delay
Supports high-speed transmission of ultra-high-definition video data
Compact structure, easy to integrate into rotating equipment
Strong shielding and anti-interference capability
Can be combined with power circuits, control signals, communication signals, and fluid media transmission
Customizable RF channels, frequency range, interface type, and integrated transmission structure
| Application | Typical Use |
|---|---|
| Satellite Communication Systems | Used for RF signal transmission in rotating satellite communication equipment |
| Shipborne Satellite Communication Systems | Supports stable RF transmission in marine rotating antenna systems |
| Vehicle-mounted Satellite Communication Equipment | Used in rotating communication systems requiring stable high-frequency signal transmission |
| Radar Antennas | Supports RF and microwave signal transmission during rotation |
| Remote Control Systems | Transfers high-frequency control and communication signals |
| Video Surveillance Systems | Suitable for rotating video monitoring systems requiring stable data transmission |
| Medical Systems | Used in precision rotating medical equipment requiring RF or signal transmission |
| Robots | Supports signal transmission in rotating joints or high-end robotic systems |
| Emergency Command Vehicles | Used in rotating communication and monitoring equipment |
| Subsea Operation Systems | Suitable for rotating systems requiring reliable signal transmission |
| Exhibition / Display Equipment | Supports rotating display systems with signal transmission requirements |
| Security Systems | Used in rotating communication, monitoring, or antenna equipment |
RF channel quantity
Frequency range up to 50GHz or higher
Interface type
Peak power and average power
VSWR requirement
Insertion loss requirement
Working speed
Installation structure
Power circuit integration
Signal circuit integration
Ethernet, video, control signal, or communication signal transmission
Fluid media integration
Connector type and cable length
If the standard HRJ100-02 model does not meet your requirements, please send us your application details, including RF channel number, frequency range, interface type, peak power, average power, VSWR requirement, insertion loss requirement, installation space, working speed, and operating environment.
Our engineers can help confirm the suitable model or provide a customized RF slip ring solution according to your equipment requirements.
