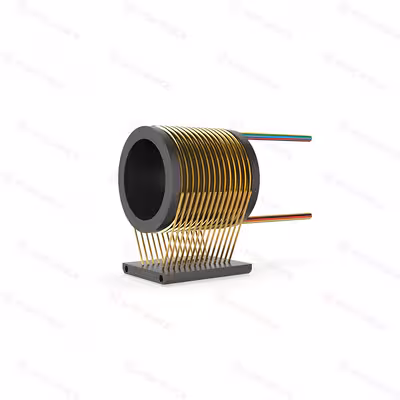

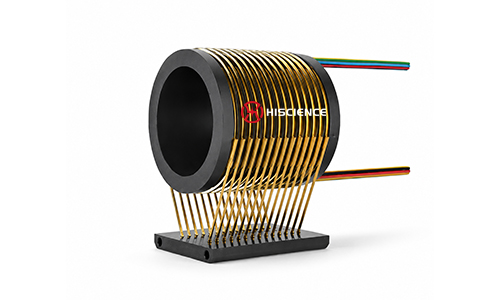

The HTS100-1630 separate slip ring consists of an independent rotor and brush assembly. Compared with integrated slip rings, the separated structure provides greater installation flexibility and allows the rotor and stator to be mounted according to the equipment layout.
The rotor section can be designed with a through-bore for hydraulic channels, pneumatic channels, or drive shaft mounting. This makes the series suitable for equipment with space constraints, compact structures, or special installation requirements.
This model supports 16 circuits, 30A current, and 380V voltage. It is suitable for rotary tables, industrial machining centers, cable reels, process control equipment, rotary sensors, compact precision instruments, and other rotating systems requiring stable power or signal transmission.
| Item | Specification |
|---|---|
| Product Type | Separate Slip Ring |
| Model | HTS100-1630 |
| Circuits | 16 circuits |
| Voltage | 380V |
| Current | 30A |
| Working Temperature | -40°C ~ 80°C |
| Working Humidity | 0 ~ 85%RH |
| Working Speed | 0–300RPM |
| Contact Material | Precious Metal |
| Insulation Resistance | ≥500MΩ@500VDC |
| Installation Type | Separated rotor and brush assembly |
| Custom Options | Circuits, bore size, current, connector type, working speed, temperature range |
To select a suitable separate slip ring, please confirm the following information:
Number of circuits
Current and voltage requirements
Signal type or power transmission requirements
Through-bore size or solid shaft requirement
Rotor and brush block installation space
Mounting method and equipment structure
Working speed
Working temperature and humidity
Wire length or connector requirements
Whether hydraulic, pneumatic, or drive shaft integration is required
If you are not sure which model is suitable, please send us your installation space, circuit requirements, current rating, and application details. Our engineers can help recommend a suitable separate slip ring solution.
Separated rotor and brush block design for flexible installation
Rotor and stator can be installed independently according to equipment structure
Suitable for compact equipment and applications with limited installation space
Available from 2 to 36 circuits for different transmission requirements
Through-bore sizes available from 9.5mm to 100mm, with solid shaft options available
Compact structure helps save installation space and reduce overall weight
V-groove gold-plated ring design provides good oxidation resistance and wear resistance
Precious metal contact design supports stable electrical performance
Customizable circuits, bore size, current rating, connector type, and working speed
| Application | Typical Use |
|---|---|
| Industrial Machining Centers | Used in compact rotating systems requiring flexible installation |
| Rotary Tables | Transfers power or signals between rotating and stationary parts |
| Heavy Equipment Turrets | Suitable for rotating structures with limited installation space |
| Cable Reels | Maintains electrical connection during cable winding and rotation |
| Packaging Equipment | Transfers power or control signals in rotating mechanisms |
| Magnetic Clutches | Suitable for compact rotating systems requiring electrical connection |
| Process Control Equipment | Supports stable transmission in rotating process systems |
| Rotary Sensors | Used for signal transmission between rotating and stationary parts |
| Robotics | Suitable for compact rotating joints or customized rotating structures |
| Medical Equipment | Suitable for precision equipment with compact installation space |
| Exhibition / Display Equipment | Used in rotating display platforms and moving display systems |
| Revolving Doors | Supports continuous electrical connection in rotating structures |
Number of circuits
Through-bore size
Solid shaft design
Current capacity
Voltage rating
Working temperature
Working speed
Connector type
Wire length
Rotor and brush block installation structure
Integration with hydraulic channels, pneumatic channels, or drive shaft mounting
If the standard model does not meet your requirements, please send us your application details, including circuit number, current, voltage, installation space, through-bore size, mounting method, working speed, and operating environment.
Our engineers can help confirm the suitable model or provide a customized separate slip ring solution according to your equipment requirements.
