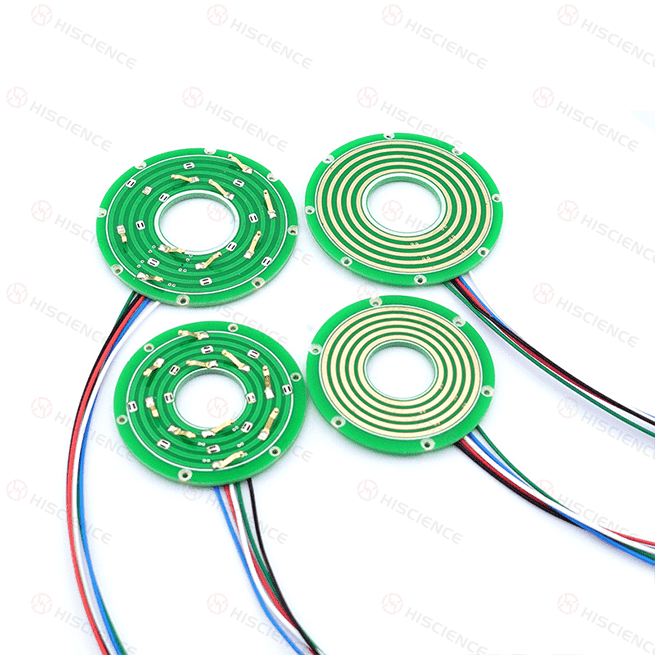

The HP25-P0610-S06 pancake slip ring is designed for equipment that requires continuous 360° rotation while transmitting both power and signals in a limited vertical space. Compared with conventional cylindrical slip rings, pancake slip rings feature a low-profile structure and larger lateral installation area, making them suitable for applications where axial height is restricted.
This model supports mixed transmission of 10A power circuits and signal circuits, making it suitable for rotating worktables, cable reels, packaging equipment, process control equipment, rotating sensors, industrial machining centers, and other specialized equipment requiring both power and signal transmission.
Custom options are available for product thickness, circuit number, lead wire length, working speed, protection grade, and power or signal integration according to different installation and application requirements

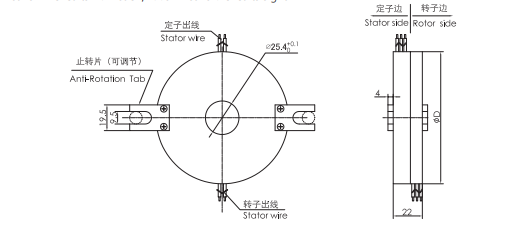

| Item | Specification |
|---|---|
| Product Type | Pancake Slip Ring |
| Model | HP25-P0610-S06 |
| Number of Circuits | 12 circuits 10A & 6 signal circuits |
| Transmission Type | Power / Signal |
| Working Speed | 0–300RPM |
| Contact Material | Precious Metal |
| Lead Wire Length | Stator / Rotor: 300mm |
| Protection Grade | IP51 |
| Insulation Resistance | ≥500MΩ@500VDC |
| Custom Options | Thickness, circuits, wire length, IP grade, current, signal type, integration requirements |
To select a suitable pancake slip ring, please confirm the following information:
Required inner hole size
Available installation height
Outer diameter limitation
Number of power circuits
Current and voltage requirements
Number of signal circuits
Signal type, such as Ethernet, RS485, CANBus, USB, sensor signal, etc.
Working speed
Wire length or connector requirements
Working environment and protection grade
If you are not sure which model is suitable, please send us your installation space, power circuit requirements, signal type, and application details. Our engineers can help recommend a suitable pancake slip ring solution.
Low-profile pancake design for limited vertical installation space
Flat structure with larger lateral installation area
Supports mixed transmission of power and signals in one unit
Suitable for equipment where conventional cylindrical slip rings cannot fit
Supports stable power and signal transmission during continuous 360° rotation
Precious metal contact design for reliable electrical performance
Low friction contact structure for stable operation and long service life
Customizable thickness, circuits, lead wire length, working speed, and protection grade
Can integrate power lines, signal lines, control lines, industrial bus signals, and sensor signals
| Application | Typical Use |
|---|---|
| Rotating Worktables | Used for power and signal transmission in compact rotating platforms |
| Industrial Machining Centers | Suitable for rotating equipment with limited axial space |
| Cable Reels | Maintains electrical connection during cable winding and rotation |
| Packaging Equipment | Transfers power and signals in compact rotating mechanisms |
| Process Control Equipment | Supports power, control, and signal transmission in rotating systems |
| Rotating Sensors | Supports sensor signal transmission between rotating and stationary parts |
| Robotics | Suitable for compact rotating joints or low-profile rotating structures |
| Exhibition / Display Equipment | Used in rotating display platforms and moving display systems |
| Medical Devices | Suitable for compact rotating systems requiring stable electrical transfer |
| Revolving Doors | Used in rotating structures requiring continuous electrical connection |
Product thickness
Inner hole size
Outer diameter
Number of power circuits
Number of signal circuits
Current capacity
Voltage rating
Signal type
Lead wire length
Connector type
Working speed
Working temperature
Protection grade, customizable from IP50 to IP68
Integration of power lines, signal lines, control lines, industrial bus signals, solenoid lines, and sensor signals
If the standard model does not meet your requirements, please send us your application details, including installation space, inner hole size, outer diameter limit, product thickness, circuit number, current, voltage, signal type, working speed, wire length, and operating environment.
Our engineers can help confirm the suitable model or provide a customized pancake slip ring solution according to your equipment requirements.
