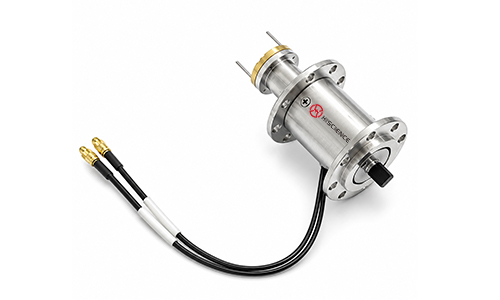

The HST03-S02-G01 RF slip ring is designed for rotating systems that require stable RF signal transmission during continuous 360° rotation. It can transmit RF signals, high-frequency signals, microwave signals, analog signals, and digital signals.
This model supports 2 channels of RF signals and uses RF1.13 coaxial wire. It features stable performance, excellent shielding effectiveness, strong anti-interference capability, and reliable transmission during rotation.
The HST03-S02-G01 RF slip ring can also support combined transmission with electrical signals, control signals, communication signals, power supply, and fluid media according to application requirements. It is suitable for radar antennas, satellite communication systems, remote control systems, video surveillance systems, medical systems, robots, and other rotating equipment requiring reliable high-frequency signal transmission.
| Item | Specification |
|---|---|
| Product Type | RF Slip Ring |
| Model | HST03-S02-G01 |
| No. of Circuits | 2 channels of RF signals |
| Lead Wire Size | RF1.13 Coaxial Wire |
| Dielectric Strength | ≥400V@50Hz |
| Insulation Resistance | ≥500MΩ@400VDC |
| Dynamic Contact Resistance | ≤10MΩ |
| Working Speed | 0–600RPM |
| Protection Grade | IP40 |
| Working Temperature | -20℃~+80℃ |
| Contact Material | Precious Metal |
| Transmission Type | RF signal / High-frequency signal / Microwave signal |
| Custom Options | RF channels, frequency range, interface type, power and signal circuits |
To select a suitable RF slip ring, please confirm the following information:
RF channel quantity
Frequency range
Interface type
Cable type and cable length
Working speed
Installation space and mounting method
Protection grade requirement
Working temperature
Whether power circuits or signal circuits need to be integrated
Whether control signals, communication signals, video signals, or fluid media transmission is required
Application equipment and operating environment
If you are not sure which RF slip ring is suitable, please send us your RF channel quantity, frequency range, interface type, installation space, working speed, and application details. Our engineers can help recommend a suitable RF slip ring solution.
Supports continuous 360° RF signal transmission
Supports 2 channels of RF signals
Uses RF1.13 coaxial wire
Suitable for high-frequency signal and microwave signal transmission
Compact structure and easy integration into rotating equipment
Stable performance during continuous rotation
Strong shielding and anti-interference capability
Suitable for high-capacity data transmission with no delay
Supports high-speed transmission of ultra-high-definition video data
Can be combined with power circuits, control signals, communication signals, and fluid media transmission
Customizable RF channels, frequency range, interface type, and integrated transmission structure
| Application | Typical Use |
|---|---|
| Military Radar | Used for RF and microwave signal transmission in rotating radar systems |
| Shipborne Satellite Communication Systems | Suitable for marine antenna systems requiring stable high-frequency signal transmission |
| Vehicle-mounted Satellite Communication Equipment | Used in rotating satellite communication systems installed on vehicles |
| Satellite Communication Vehicles | Supports RF signal transmission in mobile communication platforms |
| Emergency Command Vehicles | Used in rotating antenna, monitoring, or communication systems |
| High-end Robots | Supports RF and signal transmission in robotic joints or rotating systems |
| Rotating Turrets on Vehicles | Used for RF and signal transmission in rotating vehicle-mounted equipment |
| Remote Control Systems and Radar Antennas | Transfers high-frequency control and communication signals during rotation |
| Medical Systems | Used in precision medical equipment requiring stable RF or signal transmission |
| Video Surveillance Systems | Suitable for rotating monitoring systems requiring stable data transmission |
| Security Systems | Used in rotating communication, monitoring, or antenna equipment |
| Subsea Operation Systems | Supports reliable signal transmission in underwater rotating systems |
| Emergency Lighting Equipment | Used in rotating lighting systems requiring signal transmission |
| Robots | Suitable for rotating robotic equipment requiring signal transmission |
| Exhibition and Display Equipment | Supports rotating display equipment with RF or signal transmission requirements |
RF channel quantity
Frequency range up to 50GHz
Cable type
Connector type
Cable length
Interface type
Power circuit integration
Signal circuit integration
Control signal transmission
Communication signal transmission
Video signal transmission
Fluid media integration
Working environment
Installation space
Protection requirements
Equipment structure
Custom solutions for different application requirements
If the standard HST03-S02-G01 model does not meet your requirements, please send us your RF channel number, frequency range, interface type, cable requirement, installation space, working speed, protection grade, and operating environment.
Our engineers can help confirm the suitable model or provide a customized RF slip ring solution according to your equipment requirements.
