RF slip rings, also known as high-frequency slip rings, are designed to transmit high-frequency signals, RF signals, microwave signals, analog signals, and digital signals during 360° rotation.

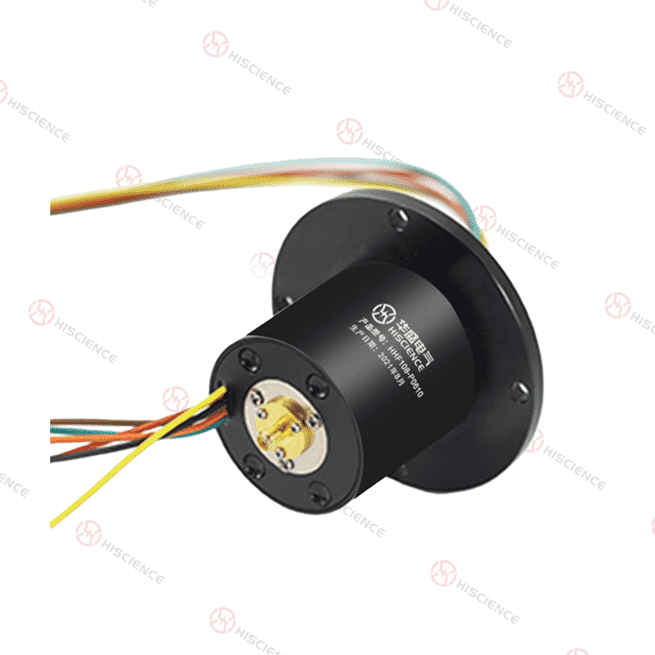

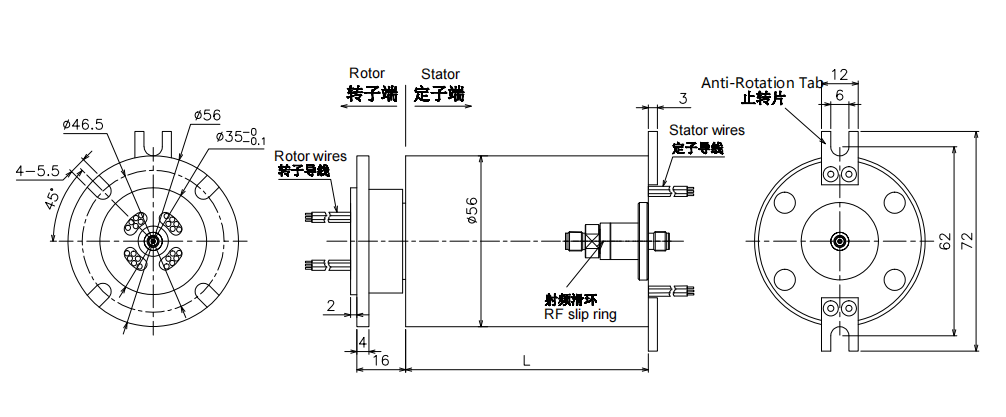

The HR0156 High-Frequency Electrical Slip Ring is designed for applications requiring stable RF signal transmission together with signal circuit integration. It supports 1 RF channel and 6 signal circuits, with a frequency range of DC–3GHz and rated power of 5W.
This series features a compact structure, stable performance, excellent shielding effectiveness, strong anti-interference capability, and reliable transmission performance. It can also support combined transmission with electrical signals, control signals, communication signals, power supply, and fluid media according to application requirements.
Custom options are available for RF channel quantity, frequency range, cable type, connector type, cable length, interface type, working speed, installation structure, and integrated signal transmission requirements.
| Item | Specification |
|---|---|
| Product Type | High-Frequency Electrical Slip Ring / RF Slip Ring |
| Transmission Type | RF signal / Signal circuits |
| No. of Circuits | 1 RF & 6 signals |
| Frequency Range | DC–3GHz |
| Rated Power | 5W |
| VSWR | 1.3 |
| VSWR Variation | 0.05 |
| Insertion Loss | 0.3 dB |
| Insertion Loss Variation | 0.05 dB |
| Working Speed | 0–150RPM |
| Custom Options | RF channels, frequency range, cable type, connector type, cable length, interface type, installation structure |
To select a suitable model, please confirm the following information:
RF channel quantity
Signal circuit requirements
Frequency range
Rated power
VSWR requirement
Insertion loss requirement
Working speed
Cable type
Connector type
Cable length
Installation space
Working environment and protection grade
Whether power, signal, communication signal, video signal, or fluid media integration is required
If you are not sure which model is suitable, please send us your equipment requirements. Our engineers can help recommend a suitable high-frequency electrical slip ring solution.
Designed for stable RF signal and high-frequency signal transmission during 360° rotation
Supports 1 RF channel and 6 signal circuits
Frequency range of DC–3GHz
Rated power of 5W
Excellent Voltage Standing Wave Ratio performance
Low insertion loss for stable signal transmission
Suitable for high-capacity data transmission with no delay
Supports high-speed transmission of ultra-high-definition video data
Compact structure for easy integration into rotating equipment
Strong anti-interference capability for high-frequency rotating systems
| Application | Typical Use |
|---|---|
| Military Radar | Used for stable RF signal transmission in rotating radar systems |
| Shipborne Satellite Communication Systems | Supports high-frequency signal transmission in marine satellite communication equipment |
| Vehicle-Mounted Satellite Communication Equipment | Used in vehicle-mounted rotating communication systems |
| Satellite Communication Vehicles | Supports RF signal transmission in mobile satellite communication platforms |
| Emergency Command Vehicles | Used in rotating communication and command systems |
| High-End Robots | Provides stable signal transmission in robotic rotating joints |
| Rotating Turrets on Vehicles | Supports RF signal and control signal transmission in rotating turret systems |
| Remote Control Systems / Radar Antennas | Used for stable signal transmission in rotating antenna systems |
| Medical Systems | Suitable for rotating medical equipment requiring high-frequency signal transfer |
| Video Surveillance Systems | Supports stable signal transmission in rotating surveillance equipment |
| National or International Security Systems | Used in security-related rotating communication equipment |
| Subsea Operation Systems | Suitable for underwater rotating equipment requiring signal transmission |
| Emergency Lighting Equipment | Supports signal transmission in rotating lighting systems |
| Robots | Used in robotic systems requiring reliable signal transfer |
| Exhibition / Display Equipment | Suitable for rotating display systems requiring stable signal transmission |
RF channel quantity
Frequency range up to 50GHz
Cable type
Connector type
Cable length
Interface type
Peak power and average power
VSWR requirement
Insertion loss requirement
Working speed
Installation structure
Power circuit integration
Signal circuit integration
Ethernet, video, control signal, or communication signal transmission
Fluid media integration
Protection grade
Working environment
Long service life and maintenance-free operation
If the standard model does not meet your requirements, please send us your application details, including RF channel quantity, frequency range, rated power, VSWR requirement, insertion loss requirement, signal circuit requirements, working speed, cable type, connector type, installation space, and operating environment.
Our engineers can help confirm the suitable model or provide a customized high-frequency electrical slip ring solution according to your equipment requirements.
