RF slip rings, also known as high-frequency slip rings, are designed to transmit high-frequency signals, RF signals, microwave signals, analog signals, and digital signals during 360° rotation.

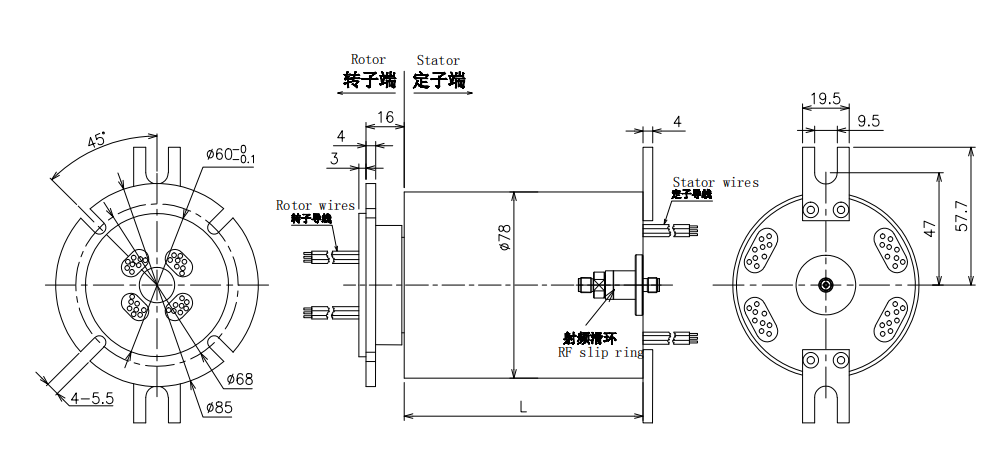

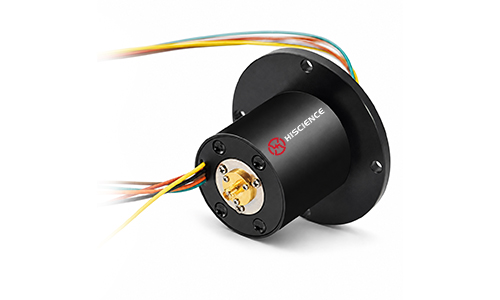

The HR0178 High-Frequency Electrical Slip Ring is designed for applications requiring stable RF signal transmission together with power loop and signal loop integration. It features a compact structure, aluminum alloy housing, precious metal contact material, stable electrical performance, excellent shielding effectiveness, and strong anti-interference capability.
This series can support combined transmission with electrical signals, control signals, communication signals, power supply, and fluid media according to application requirements. It is suitable for radar systems, satellite communication equipment, remote control systems, video surveillance systems, medical systems, robots, and other high-frequency rotating systems.
Custom options are available for RF channel quantity, signal loop configuration, rated voltage, wire specification, cable length, connector type, working speed, installation structure, and integrated transmission requirements.
| Item | Specification |
|---|---|
| Product Type | High-Frequency Electrical Slip Ring / RF Slip Ring |
| Transmission Type | RF signal / Power loop / Signal loop |
| Rated Speed | 0–300rpm |
| Power Loop | Signal Loop |
| Operating Temperature | -30°C~80°C |
| Rated Voltage | 0–440VAC/DC / 0–220VAC/DC |
| Operating Humidity | 85%RH and below |
| Wire Specifications | AWG16# / AWG22# |
| Contact Material | Precious Metals |
| Insulation Resistance | 500MΩ@500VDC / 500MΩ@300VDC |
| Housing Material | Aluminum Alloy |
| Insulation Strength | 500V@50Hz, 60s |
| Protection Grade | IP51 |
| Dynamic Resistance Variation | ≤10mΩ |
| Custom Options | RF channels, signal loops, wire specifications, voltage, connector type, cable length, installation structure |
To select a suitable model, please confirm the following information:
RF channel quantity
Power loop and signal loop requirements
Current and voltage requirements
Frequency range
Signal type, such as RF signal, communication signal, control signal, video signal, etc.
Working speed
Installation space
Wire specification
Cable length and connector type
Working environment and protection grade
Whether power, signal, data, RF, or fluid media integration is required
If you are not sure which model is suitable, please send us your equipment requirements. Our engineers can help recommend a suitable high-frequency electrical slip ring solution.
Designed for stable RF signal and high-frequency signal transmission during 360° rotation
Supports power loop and signal loop integration
Can be combined with 1–96 circuits for power and signal transmission
Excellent Voltage Standing Wave Ratio performance
Suitable for high-capacity data transmission with no delay
Supports high-speed transmission of ultra-high-definition video data
Compact structure for easy integration into rotating equipment
Aluminum alloy housing for stable mechanical performance
Precious metal contact design for reliable electrical connection
Strong anti-interference capability for high-frequency rotating systems
| Application | Typical Use |
|---|---|
| Military Radar | Used for stable RF signal transmission in rotating radar systems |
| Shipborne Satellite Communication Systems | Supports high-frequency signal transmission in marine satellite communication equipment |
| Vehicle-Mounted Satellite Communication Equipment | Used in vehicle-mounted rotating communication systems |
| Satellite Communication Vehicles | Supports RF signal transmission in mobile satellite communication platforms |
| Emergency Command Vehicles | Used in rotating communication and command systems |
| High-End Robots | Provides stable signal transmission in robotic rotating joints |
| Rotating Turrets on Vehicles | Supports RF signal and control signal transmission in rotating turret systems |
| Remote Control Systems / Radar Antennas | Used for stable signal transmission in rotating antenna systems |
| Medical Systems | Suitable for rotating medical equipment requiring high-frequency signal transfer |
| Video Surveillance Systems | Supports stable signal transmission in rotating surveillance equipment |
| National or International Security Systems | Used in security-related rotating communication equipment |
| Subsea Operation Systems | Suitable for underwater rotating equipment requiring signal transmission |
| Emergency Lighting Equipment | Supports signal transmission in rotating lighting systems |
| Robots | Used in robotic systems requiring reliable signal transfer |
| Exhibition / Display Equipment | Suitable for rotating display systems requiring stable signal transmission |
RF channel quantity
Signal loop quantity
Power loop configuration
Frequency range up to 50GHz
Rated voltage
Wire specification
Cable type
Connector type
Cable length
Interface type
VSWR requirement
Insertion loss requirement
Working speed
Installation structure
Housing material
Protection grade
Power circuit integration
Signal circuit integration
Control signal, communication signal, video signal, or fluid media integration
Long service life and maintenance-free operation
If the standard model does not meet your requirements, please send us your application details, including RF channel quantity, power loop and signal loop requirements, rated voltage, wire specification, working speed, cable length, connector type, installation space, and operating environment.
Our engineers can help confirm the suitable model or provide a customized high-frequency electrical slip ring solution according to your equipment requirements.
