RF slip rings, also known as high-frequency slip rings, are designed to transmit high-frequency signals, RF signals, microwave signals, analog signals, and digital signals during 360° rotation.

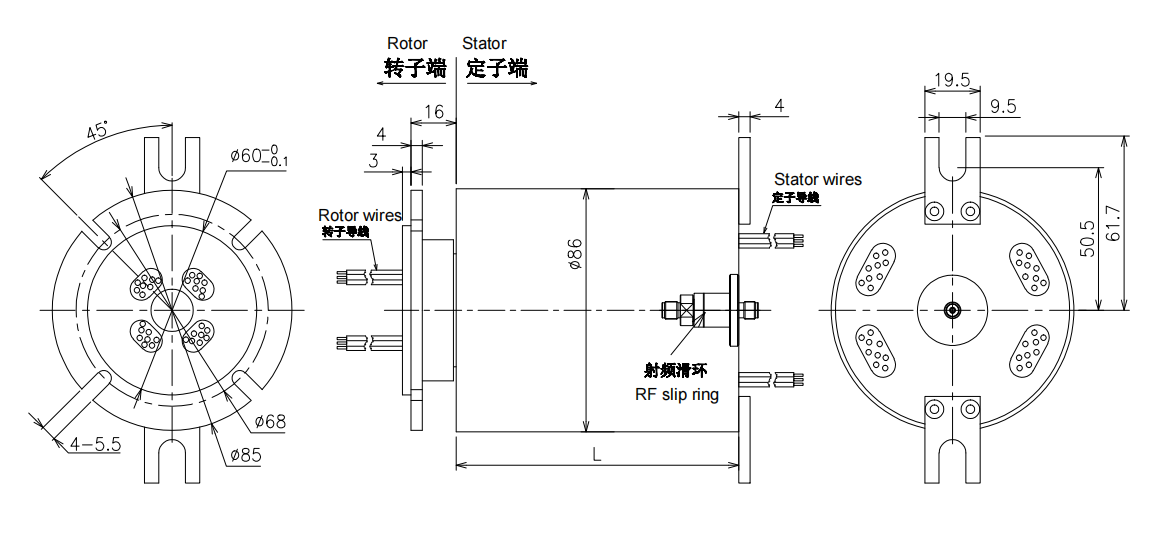

The HR0186 High-Frequency Electrical Slip Ring supports 1 RF channel and 6 signal circuits in one compact structure. It is suitable for rotating systems that require stable signal performance, low insertion loss, excellent shielding effectiveness, and strong anti-interference capability.
This series can also support combined transmission with electrical signals, control signals, communication signals, power supply, and fluid media according to application requirements. It is suitable for radar systems, satellite communication equipment, remote control systems, video surveillance systems, medical systems, robots, and other high-frequency rotating systems.
Custom options are available for RF channel quantity, signal circuit quantity, frequency range, cable type, connector type, cable length, working speed, installation structure, and integrated transmission requirements.
| Item | Specification |
|---|---|
| Product Type | High-Frequency Electrical Slip Ring / RF Slip Ring |
| No. of Circuits | 1 RF & 6 signals |
| Transmission Type | RF signal / High-frequency signal / Electrical signal |
| Frequency Range | DC–3GHz |
| Rated Power | 5W |
| VSWR | 1.3 |
| VSWR Variation | 0.05 |
| Insertion Loss | 0.3 dB |
| Insertion Loss Variation | 0.05 dB |
| Working Speed | 0–150RPM |
| Custom Options | RF channels, signal circuits, frequency range, cable type, connector type, cable length, installation structure |
To select a suitable model, please confirm the following information:
RF channel quantity
Number of signal circuits
Current and voltage requirements
Frequency range
Rated power
VSWR requirement
Insertion loss requirement
Working speed
Installation space
Cable type and cable length
Connector type and interface type
Whether power circuits, signal circuits, control signals, communication signals, video signals, or fluid media integration is required
If you are not sure which model is suitable, please send us your equipment requirements. Our engineers can help recommend a suitable high-frequency electrical slip ring solution.
Supports RF signal and electrical signal transmission in one unit
Designed for stable high-frequency signal transmission during 360° rotation
Supports DC–3GHz frequency range
Low insertion loss for stable signal performance
Excellent VSWR performance
Compact structure for easy integration into rotating equipment
Strong anti-interference capability
Suitable for high-capacity data transmission with no delay
Supports high-speed transmission of ultra-high-definition video data
Can be combined with power circuits and signal circuits according to application requirements
| Application | Typical Use |
|---|---|
| Military Radar | Used for stable RF signal transmission in rotating radar systems |
| Shipborne Satellite Communication Systems | Supports high-frequency signal transmission in marine satellite communication equipment |
| Vehicle-Mounted Satellite Communication Equipment | Used in vehicle-mounted rotating communication systems |
| Satellite Communication Vehicles | Supports RF signal transmission in mobile satellite communication platforms |
| Emergency Command Vehicles | Used in rotating communication and command systems |
| High-End Robots | Provides stable signal transmission in robotic rotating joints |
| Rotating Turrets on Vehicles | Supports signal transmission in rotating turret systems |
| Remote Control Systems / Radar Antennas | Used for stable signal transmission in rotating antenna systems |
| Medical Systems | Suitable for rotating medical equipment requiring high-frequency signal transfer |
| Video Surveillance Systems | Supports stable signal transmission in rotating surveillance equipment |
| National or International Security Systems | Used in security-related rotating communication equipment |
| Subsea Operation Systems | Suitable for underwater rotating equipment requiring signal transmission |
| Emergency Lighting Equipment | Supports signal transmission in rotating lighting systems |
| Robots | Used in robotic systems requiring reliable RF signal transfer |
| Exhibition / Display Equipment | Suitable for rotating display systems requiring stable signal transmission |
RF channel quantity
Signal circuit quantity
Frequency range up to 50GHz
Cable type
Connector type
Cable length
Interface type
Rated power
VSWR requirement
Insertion loss requirement
Working speed
Installation structure
Power circuit integration
Signal circuit integration
Control signal, communication signal, video signal, or fluid media integration
Long service life and maintenance-free operation
If the standard model does not meet your requirements, please send us your application details, including RF channel quantity, signal circuit quantity, frequency range, rated power, VSWR requirement, insertion loss requirement, working speed, cable type, connector type, installation space, and operating environment.
Our engineers can help confirm the suitable model or provide a customized high-frequency electrical slip ring solution according to your equipment requirements.
