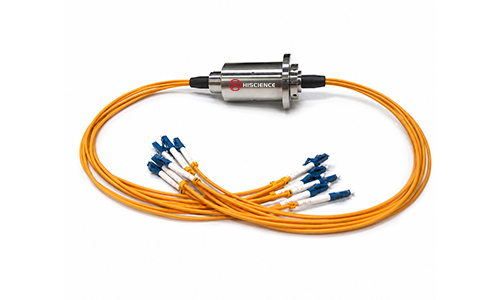

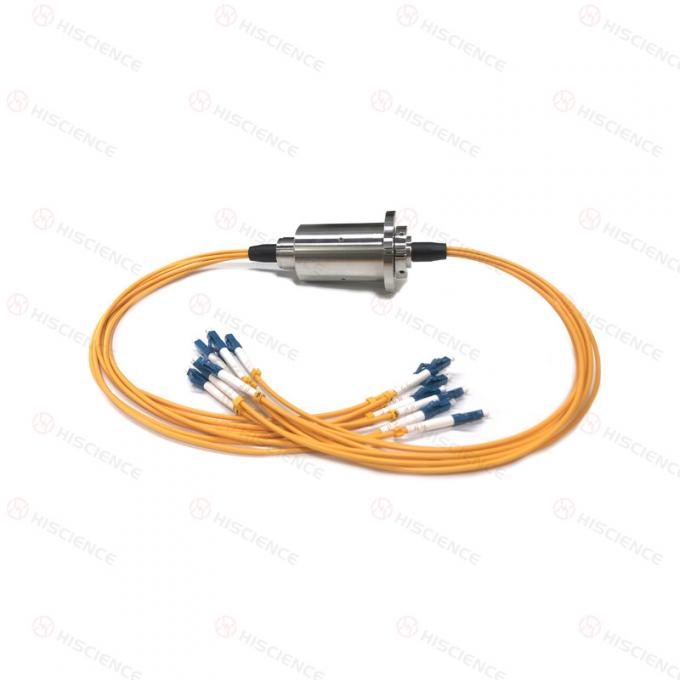

The HF02F-FC001 fiber optic slip ring, also known as an optical slip ring, is a specialized rotating connector designed to enable uninterrupted 360° rotation while transmitting optical energy and signals between stationary and rotating parts.
It supports single-mode 9/125μm fiber transmission, with a wavelength range of 780–1650nm and default operating wavelengths of 1310nm and 1550nm. This model supports 4 fiber channels, with low insertion loss, stable return loss, optical crosstalk protection, and reliable operation in demanding rotating systems.
Compared with traditional electrical slip rings, fiber optic transmission is non-contact and non-frictional, helping reduce wear and improve long-term performance. It is suitable for robots, material handling systems, medical systems, remote control systems, radar systems, video surveillance systems, offshore equipment, naval systems, and other rotating optical communication applications.

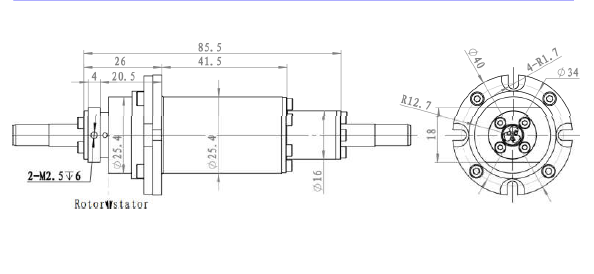

| Item | Specification |
|---|---|
| Product Type | Fiber Optic Slip Ring |
| Fiber Type | Single Mode 9/125μm |
| Number of Circuits | 4 |
| Wavelength Range | 780–1650nm, default 1310nm & 1550nm |
| Insertion Loss | ≤4.0dB |
| Insertion Loss Variation | ≤±1dB |
| Return Loss | ≥45dB |
| Working Temperature | -40°C to +80°C |
| Storage Temperature | -45°C to +85°C |
| Protection Grade | IP64 |
| Optical Crosstalk | ≥70 |
| Max. Optical Power | 25dBm |
| Rotating Speed | 2000RPM |
| Working Life | ≥50 million rotations at 300RPM |
| Pulling Strength | ≥75N |
To select a suitable fiber optic slip ring, please confirm the following information:
Fiber type
Number of fiber channels
Operating wavelength
Insertion loss requirement
Insertion loss variation requirement
Return loss requirement
Optical crosstalk requirement
Max. optical power
Rotating speed
Working life requirement
Working temperature and storage temperature
Protection grade
Pulling strength requirement
Cable length and connector type
Installation space and structure
Whether electrical signal, power, or hybrid integration is required
If you are not sure which model is suitable, please send us your equipment requirements. Our engineers can help recommend a suitable fiber optic slip ring solution.
Supports 4 single-mode fiber channels
Designed for continuous 360° optical signal transmission
Wavelength range from 780nm to 1650nm
Default operating wavelengths include 1310nm and 1550nm
Low insertion loss, ≤4.0dB
Return loss ≥45dB
Optical crosstalk performance ≥70
Max. optical power up to 25dBm
Rotating speed up to 2000RPM
Working life ≥50 million rotations at 300RPM
Patented optical coupling technology with simplified coupling structure
No fiber collimators or coaxial adjustment required
One-time assembly with high coupling efficiency
Non-contact optical transmission helps reduce wear and improve service life
Sealed structure helps protect optical components from external environmental factors
No leakage and no electromagnetic interference
Suitable for long-distance and high-bandwidth signal transmission
Compact structure, easy to integrate with electrical slip rings
| Application | Typical Use |
|---|---|
| Robots | Optical signal transmission in rotating robotic systems |
| Material Handling Systems | Stable data transfer in rotating handling equipment |
| Medical Systems | Signal transmission in precision medical equipment |
| Remote Control Systems | Optical communication in rotating control systems |
| Radar Systems | High-speed signal transmission in rotating radar structures |
| Rotating Turrets on Vehicles | Optical transmission in vehicle-mounted rotating systems |
| Video Surveillance Systems | Stable video or data transmission in rotating monitoring systems |
| Offshore Equipment | Reliable signal transmission in marine and offshore environments |
| Naval Systems | Optical communication in shipborne rotating equipment |
| National or International Security Systems | Signal transmission in security-related rotating systems |
| Submarine Operations Systems | Optical transmission for underwater and subsea rotating systems |
Fiber transmission type
Single-mode or multi-mode fiber
Single-channel or multi-channel configurations
Number of fiber channels
Operating wavelength
Insertion loss requirement
Insertion loss variation requirement
Return loss requirement
Optical crosstalk requirement
Max. optical power
Rotating speed
Working life
Pulling strength
Cable length
Connector type
Housing material
Protection grade
Installation structure
Working temperature range
Storage temperature range
Integration with electrical signal, power, or other hybrid transmission requirements
If the standard model does not meet your requirements, please send us your application details, including fiber type, channel number, wavelength, insertion loss requirement, return loss requirement, optical power, rotating speed, working life, cable length, connector type, installation space, and working environment.
Our engineers can help confirm the suitable model or provide a customized fiber optic slip ring solution according to your equipment requirements.
