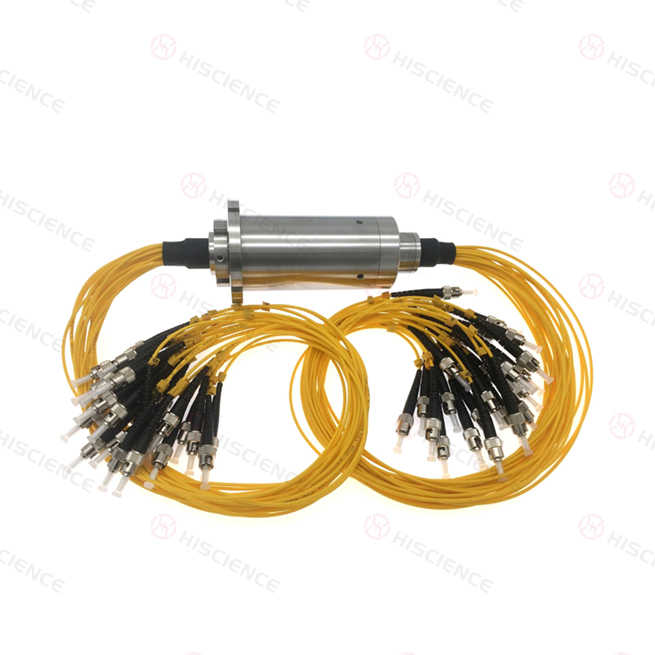

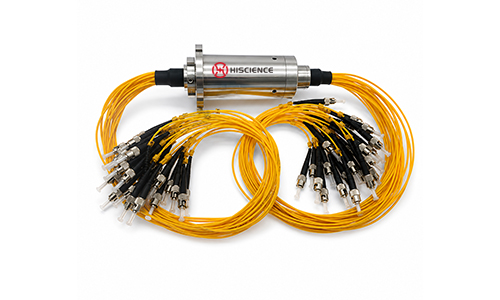

The HF02J-FC001 fiber optic slip ring, also known as an optical slip ring, is a specialized rotating connector designed to enable uninterrupted 360° rotation while transmitting optical energy and signals between stationary and rotating parts.
It supports single-mode fiber transmission with a wavelength range of 780–1650nm, with 1310nm and 1550nm as the default operating wavelengths. With up to 37 fiber channels, low insertion loss, reliable return loss performance, and IP64 protection, this model is suitable for applications requiring high-speed optical signal transmission, large information capacity, high precision, and long-distance communication.
Compared with traditional electrical slip rings, fiber optic signal transmission is non-contact and non-frictional, helping reduce wear and improve long-term transmission stability. This model is suitable for robots, material handling systems, medical systems, radar systems, remote control systems, video surveillance systems, offshore equipment, naval systems, and other high-performance rotating communication applications.

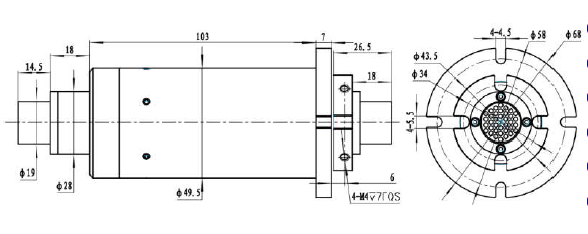

| Item | Specification |
|---|---|
| Product Type | Fiber Optic Slip Ring |
| Fiber Type | Single Mode 9/125μm |
| Number of Circuits | ＜37 |
| Wavelength Range | 780–1650nm, default 1310nm & 1550nm |
| Insertion Loss | ≤4.0dB |
| Insertion Loss Variation | ≤±1dB |
| Return Loss | ≥45dB |
| Working Temperature | -40°C to +80°C |
| Storage Temperature | -45°C to +85°C |
| Protection Grade | IP64 |
| Optical Crosstalk | ≥70 |
| Max. Optical Power | 25dBm |
| Rotating Speed | 2000RPM |
| Working Life | ≥50 million rotations at 300RPM |
| Pulling Strength | ≥75 |
To select a suitable fiber optic slip ring, please confirm the following information:
Fiber type
Number of fiber channels
Operating wavelength
Insertion loss requirement
Insertion loss variation requirement
Return loss requirement
Rotating speed
Working life requirement
Protection grade
Working temperature and storage temperature
Cable length and connector type
Installation space and structure
Whether electrical signal, power, or hybrid integration is required
If you are not sure which model is suitable, please send us your equipment requirements. Our engineers can help recommend a suitable fiber optic slip ring solution.
Supports single-mode 9/125μm fiber transmission
Supports up to 37 fiber channels
Designed for stable 360° optical signal transmission
Wavelength range from 780nm to 1650nm
Default operating wavelengths include 1310nm and 1550nm
Insertion loss ≤4.0dB
Return loss ≥45dB
IP64 protection grade for industrial environments
Rotating speed up to 2000RPM
Working life ≥50 million rotations at 300RPM
Non-contact optical transmission helps reduce wear and improve stability
Strong resistance to electromagnetic interference
Suitable for high-speed and long-distance optical signal transmission
| Application | Typical Use |
|---|---|
| Robots | Optical signal transmission in rotating robotic systems |
| Material Handling Systems | Stable data transfer in rotating handling equipment |
| Medical Systems | Signal transmission in precision medical equipment |
| Remote Control Systems | Optical communication in rotating control systems |
| Radar Systems | High-speed signal transmission in rotating radar structures |
| Rotating Turrets on Vehicles | Optical transmission in vehicle-mounted rotating systems |
| Video Surveillance Systems | Stable video or data transmission in rotating monitoring systems |
| Offshore Equipment | Reliable signal transmission in marine and offshore environments |
| Naval Systems | Optical communication in shipborne rotating equipment |
| National or International Security Systems | Signal transmission in security-related rotating systems |
| Submarine Operations Systems | Optical transmission for underwater and subsea rotating systems |
Fiber transmission type
Single-mode or multi-mode fiber
Single-channel or multi-channel configurations
Number of fiber channels
Operating wavelength
Insertion loss requirement
Insertion loss variation requirement
Return loss requirement
Optical crosstalk requirement
Max. optical power
Rotating speed
Working life
Protection grade
Cable length
Connector type
Housing material
Installation structure
Working temperature range
Storage temperature range
Pulling strength requirement
Integration with electrical signal, power, or other hybrid transmission requirements
If the standard model does not meet your requirements, please send us your application details, including fiber type, channel number, wavelength, insertion loss requirement, return loss requirement, rotating speed, protection grade, cable length, connector type, installation space, and working environment.
Our engineers can help confirm the suitable model or provide a customized fiber optic slip ring solution according to your equipment requirements.
