The HST22-P06-S13-G03-F01 Optical-Electrical Slip Ring integrates one single-mode fiber channel with six mixed-signal circuits for continuous transmission between stationary and rotating equipment.
Designed for low-speed precision rotation, it supports stable optical data transfer at 1310/1550 nm with insertion loss below 2 dB. Precious-metal contacts, an aluminum-alloy housing, and IP51 protection support reliable operation in industrial systems.
The integrated structure reduces cabling complexity and is suitable where optical data and electrical connections must pass through a compact rotating interface.

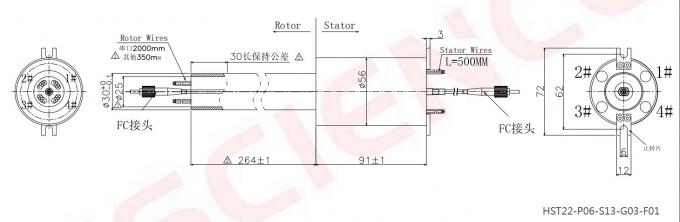

| Item | Specification |
|---|---|
| Product Type | Optical-Electrical Slip Ring |
| Model | HST22-P06-S13-G03-F01 |
| Mixed Signal Circuits | 6 |
| Fiber Channels | 1 |
| Working Speed | 0–10 rpm |
| Protection Rating | IP51 |
| Working Temperature | -30°C to +70°C |
| Contact Material | Precious metal |
| Housing Material | Aluminum alloy |
| Fiber Type | Single-mode, 9/125 µm |
| Wavelength | 1310/1550 nm |
| Insertion Loss | <2 dB |
| Insertion Loss Ripple | <0.5 dB |
| Connector Type | FC (PC) |
To select a suitable HST22-P06-S13-G03-F01 Optical-Electrical Slip Ring, please confirm the following parameters:
Fiber type
Number of optical channels
Operating wavelength
Electrical circuit number
Signal or power transmission requirements
Current and voltage ratings
Rated rotation speed
Protection grade
Working temperature
Connector type and PC/APC end face
Cable sheath type and cable length
Installation dimensions and mounting method
If you are not sure which configuration is suitable, send us your technical requirements and application details. Our engineers can recommend an appropriate standard or customized solution.
Integrates one single-mode fiber channel with six mixed-signal circuits
Supports uninterrupted 360° rotation
Low optical insertion loss below 2 dB
Insertion-loss ripple below 0.5 dB
Strong resistance to electromagnetic interference
Precious-metal electrical contacts
Aluminum-alloy housing
IP51 protection for industrial environments
FC (PC) optical connector
Customizable electrical and mechanical configuration
| Application | Typical Use |
|---|---|
| Robotics | Optical and electrical transmission through rotating robot joints |
| Material Handling Systems | Hybrid rotary transmission in automated conveying and handling equipment |
| Medical Systems | Stable power and high-speed data transmission in precision rotating devices |
| Remote Control Systems | Reliable rotary communication for remotely operated equipment |
| Radar Systems | High-speed optical data and electrical transmission in rotating platforms |
| Vehicle Turrets | Integrated optical signal and power transmission through rotating assemblies |
| Video Surveillance Systems | Hybrid transmission for rotating imaging and monitoring equipment |
| Offshore and Naval Equipment | Stable transmission in marine and offshore rotary systems |
| Security Systems | Reliable optical-electrical connectivity in continuous-rotation equipment |
Single-mode or multimode fiber
Number of optical channels
Operating wavelength
Insertion-loss and return-loss requirements
Electrical circuit number and signal type
Current and voltage ratings
Connector type and PC/APC end face
Cable length and sheath type
Protection level
Rated speed and working-temperature range
Installation structure, housing, and drive connection
If the standard HST22-P06-S13-G03-F01 model does not fully match your application, please provide your requirements for fiber type, optical channels, electrical circuits, current, voltage, transmission type, rotation speed, connector, cable length, installation dimensions, working environment, and protection level.
Our engineering team can recommend a suitable standard product or develop a customized optical-electrical slip ring solution for your project.
