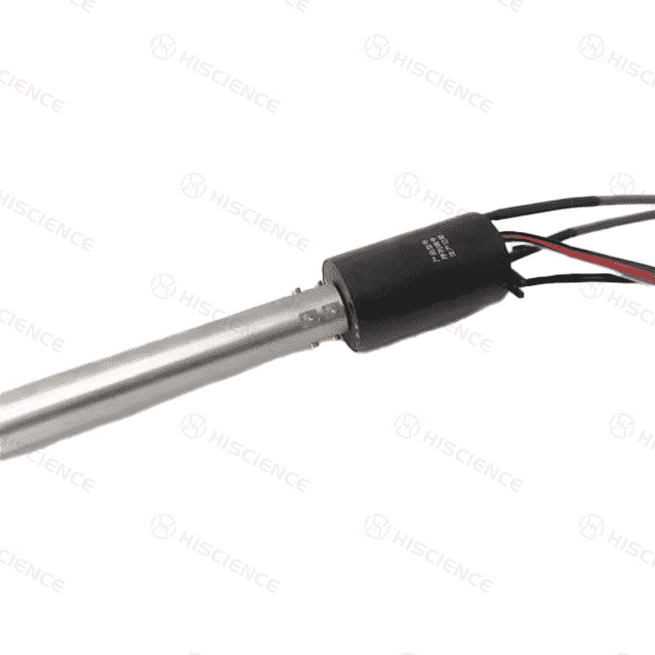

The HF0156 Optical-Electrical Slip Ring combines fiber-optic transmission with electrical signal or power circuits in one integrated rotary interface. It enables uninterrupted 360° rotation while maintaining stable communication between stationary and rotating equipment.
Its optical channel provides low-loss, high-bandwidth transmission with strong immunity to electromagnetic interference, while the electrical section simplifies hybrid system integration and reduces installation complexity.
With single-mode and multimode options, multiple operating wavelengths, configurable protection levels, and flexible connector choices, the HF0156 is suitable for precision rotating systems and demanding industrial environments.

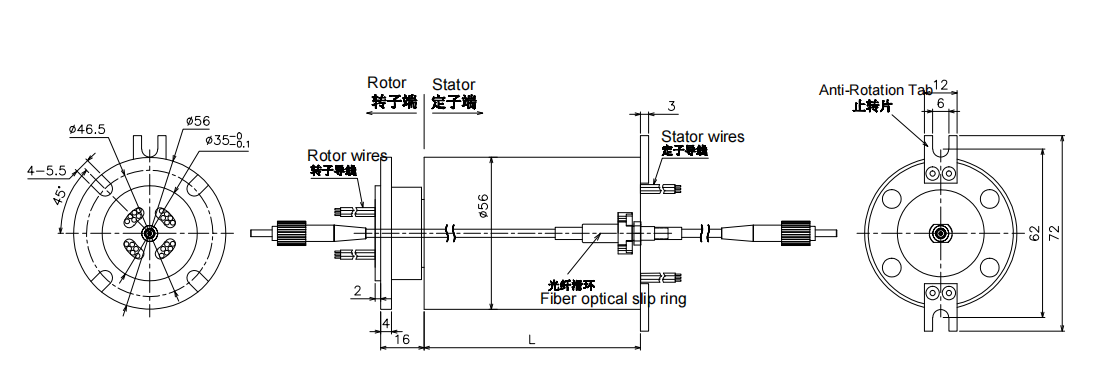

| Item | Specification |
|---|---|
| Product Type | Optical-Electrical Slip Ring |
| Model | HF0156 |
| Mixed Signal Circuits | 72 |
| Fiber Channels | 1 |
| Fiber Type | Single-mode (SM), Multimode (MM) |
| Operating Wavelength | 1310/1550 nm, 850/1310 nm |
| Insertion Loss | <4 dB |
| Insertion Loss Fluctuation | <1 dB |
| Return Loss | ≥35 dB |
| Working Temperature | -40°C to +85°C |
| Storage Temperature | -50°C to +85°C |
| Protection Rating | IP54 / IP65 / IP67 (optional) |
| Rated Speed | 0–300 rpm |
| Estimated Lifespan | >100 million cycles |
| Sheath Type | TPU or armored (optional) |
| Connector Type | FC / LC / SC / ST (PC/APC end face optional) |
| Transmission Type | Optical + electrical hybrid transmission |

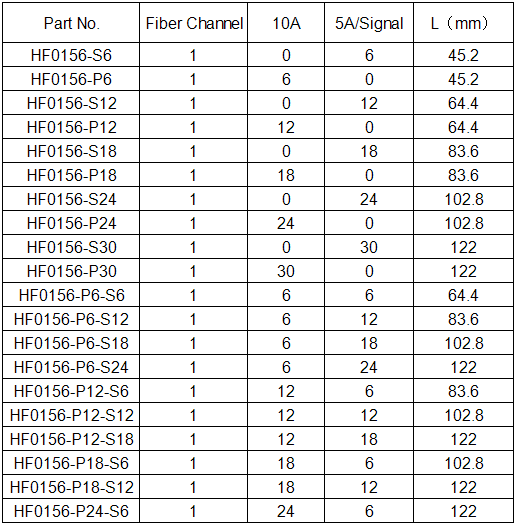

To select a suitable HF0156 Optical-Electrical Slip Ring, please confirm the following parameters:
Fiber type
Number of optical channels
Operating wavelength
Electrical circuit number
Signal or power transmission requirements
Current and voltage ratings
Rated rotation speed
Protection grade
Working temperature
Connector type and PC/APC end face
Cable sheath type and cable length
Installation dimensions and mounting method
If you are not sure which configuration is suitable, send us your technical requirements and application details. Our engineers can recommend an appropriate standard or customized solution.
Integrates optical and electrical transmission in one compact rotary interface
Supports uninterrupted 360° rotation
Supports single-mode and multimode fiber
Stable optical transmission with low insertion loss
Strong resistance to electromagnetic interference
Supports simultaneous transmission of optical signals and electrical signals or power
Optional IP54, IP65, and IP67 protection levels
Optional TPU or armored cable sheath
FC, LC, SC, and ST connector options with PC/APC end faces
Designed for long service life and demanding industrial environments
Customizable transmission and installation configurations
| Application | Typical Use |
|---|---|
| Robotics | Optical and electrical transmission through rotating robot joints |
| Material Handling Systems | Hybrid rotary transmission in automated conveying and handling equipment |
| Medical Systems | Stable power and high-speed data transmission in precision rotating devices |
| Remote Control Systems | Reliable rotary communication for remotely operated equipment |
| Radar Systems | High-speed optical data and electrical transmission in rotating platforms |
| Vehicle Turrets | Integrated optical signal and power transmission through rotating assemblies |
| Video Surveillance Systems | Hybrid transmission for rotating imaging and monitoring equipment |
| Offshore and Naval Equipment | Stable transmission in marine and offshore rotary systems |
| Security Systems | Reliable optical-electrical connectivity in continuous-rotation equipment |
Single-mode or multimode fiber
Number of optical channels
Operating wavelength
Insertion-loss and return-loss requirements
Electrical circuit number and signal type
Current and voltage ratings
Connector type and PC/APC end face
Cable length and sheath type
Protection level
Rated speed and working-temperature range
Installation structure, housing, and drive connection
If the standard HF0156 model does not fully match your application, please provide your requirements for fiber type, optical channels, electrical circuits, current, voltage, transmission type, rotation speed, connector, cable length, installation dimensions, working environment, and protection level.
Our engineering team can recommend a suitable standard product or develop a customized optical-electrical slip ring solution for your project.
Get a Quote | Download Datasheet | Request Drawing / 3D Model
