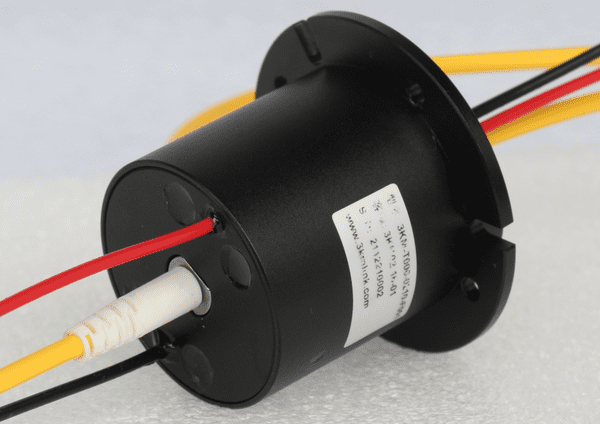

The HT0986 optical-electrical slip ring is a hybrid rotary transmission device designed to integrate optical signal transmission with electrical signal or power transmission during continuous 360° rotation. It enables stable communication between rotating and stationary parts, making it suitable for systems that require both high-speed optical transmission and reliable electrical connectivity.
Compared with conventional electrical transmission, the fiber optic section offers low loss, strong anti-interference capability, and stable long-distance communication performance. The optical channel is not affected by electromagnetic interference, while the electrical section can simultaneously support signal or power transmission, helping simplify overall system integration.
With support for single-mode and multimode fiber options, multiple wavelength combinations, optional protection ratings, and flexible connector configurations, the HT0986 optical-electrical slip ring is suitable for complex industrial environments and rotating equipment applications that demand reliability, precision, and compact installation.
| Item | Specification |
|---|---|
| Product Type | Optical-Electrical Slip Ring |
| Fiber Type | Single-mode (SM), Multimode (MM) |
| Operating Wavelength | 1310/1550 nm, 850/1310 nm |
| Insertion Loss | <4 dB |
| Insertion Loss Fluctuation | <1 dB |
| Return Loss | ≥35 dB |
| Working Temperature | -40°C to +85°C |
| Storage Temperature | -50°C to +85°C |
| Protection Rating | IP54 / IP65 / IP67 (optional) |
| Rated Speed | 0–300 rpm |
| Estimated Lifespan | >100 million cycles |
| Sheath Type | TPU or armored (optional) |
| Connector Type | FC / LC / SC / ST (PC/APC end face optional) |
| Transmission Type | Optical + electrical hybrid transmission |
To choose a suitable HT0986 optical-electrical slip ring, please confirm the following:
Fiber type
Number of optical channels
Required wavelength
Insertion loss requirement
Return loss requirement
Electrical circuit number
Current and voltage requirements
Signal or power transmission requirement
Rated rotating speed
Working temperature
Protection grade
Cable sheath type
Connector type and end face
Cable length
Installation dimensions and mounting method
Whether integrated optical + electrical transmission is required
If you are unsure which configuration is suitable, you can send us your technical requirements and application details. Our engineers can recommend the proper solution for your equipment.
Integrates optical and electrical transmission in one slip ring
Supports continuous 360° rotation
Supports single-mode and multimode fiber options
Optical transmission with low loss and strong anti-interference performance
Stable signal transmission without electromagnetic interference
Supports high-speed data transmission and electrical signal or power transmission
Compact structure for easy system integration
Optional IP54, IP65, and IP67 protection levels
Optional TPU or armored cable sheath
Multiple connector options including FC, LC, SC, and ST
PC/APC connector end face optional
Long service life of over 100 million cycles
Suitable for harsh and complex industrial environments
Can be customized according to transmission, structural, and environmental requirements
| Application | Typical Use |
|---|---|
| Robots | Optical and electrical transmission in rotating robotic joints and control systems |
| Material Handling Systems | Hybrid signal transfer in automated conveying and handling equipment |
| Medical Systems | Stable optical and electrical transmission in precision medical devices |
| Remote Control Systems | Reliable rotary communication for remote control equipment |
| Radar Systems | High-speed optical signal transmission in rotating radar assemblies |
| Rotating Turrets on Vehicles | Integrated signal and power transfer in rotating vehicle platforms |
| Video Surveillance Systems | Video, control, and power transmission in rotating surveillance equipment |
| Offshore Equipment | Rotary signal transmission in marine and offshore environments |
| Naval Systems | Optical-electrical communication in shipboard rotating systems |
| National or International Security Systems | Reliable signal transmission in security and defense systems |
| Submarine Operations Systems | Stable transmission in underwater and subsea rotating applications |
Fiber type
Single-mode or multimode fiber
Number of optical channels
Operating wavelength
Insertion loss requirement
Return loss requirement
Electrical circuit number
Signal type
Current capacity
Voltage rating
Power transmission integration
Communication signal integration
Connector type
PC/APC end face
Cable length
Sheath type
TPU or armored cable
Protection level
Rated rotating speed
Working temperature range
Storage temperature range
Housing structure
Installation method
Integrated optical, signal, and power transmission requirements
If the standard configuration does not fully match your application, please send us your detailed requirements, such as fiber type, optical channel number, wavelength, electrical circuit number, current, voltage, signal type, rotation speed, connector type, cable length, working environment, and protection level.
Our engineering team can recommend a suitable standard model or provide a customized optical-electrical slip ring solution based on your project needs.
