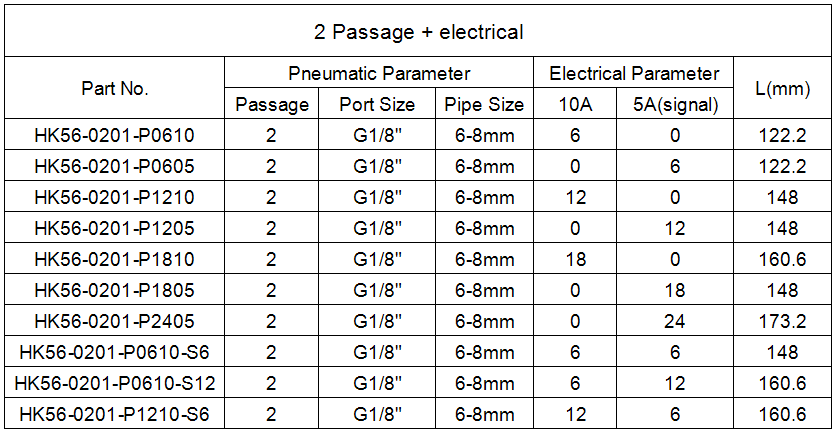

Rotary Unions are essential 360-degree rotating devices that facilitate both physical and electrical connections. Hiscience offers G1/8"M5 interface standard products featuring 2, 4, 6, 8 gas passages and 6-24 circuits rotary unions. These units utilize high-quality contact and insulation materials, minimizing signal loss and interference to ensure precise and reliable transmission of signals. Such efficiency is critical for applications demanding accurate data, stable power connections, or precise control.
| Item | Specification |
|---|---|
| NO. of Circuits | 18 Circuits 2A & 6 passages |
| Connection Thread Size | G1/8” |
| Pressure | -100Kpa~1Mpa |
| Transmitting Media | Compressed Air |
| Roating Speed | 0~200RPM |
| Protection | IP51 |
| Working Temperature | -30℃～+70℃ |

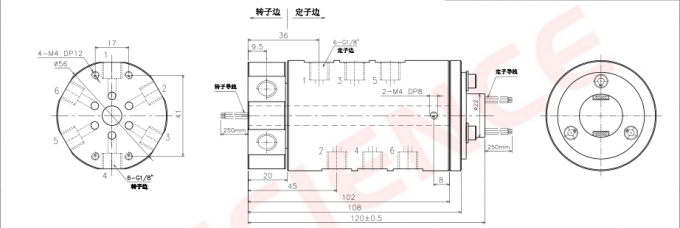

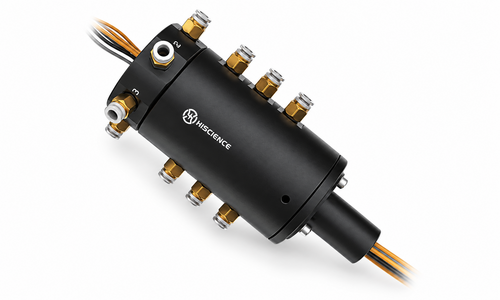

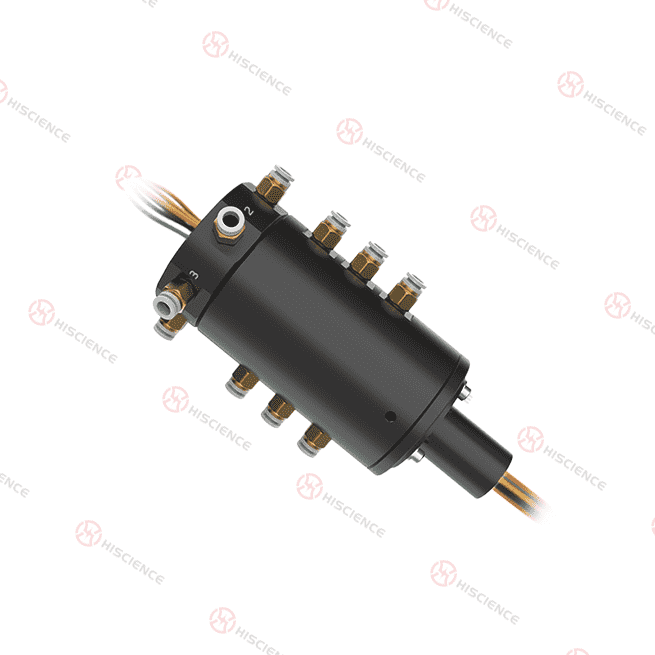

To select the suitable HK56-0601-P1802 Rotary Union, please confirm the following requirements:
Number of pneumatic or hydraulic passages
Working medium and operating pressure
Electrical circuit count, current, and voltage
Signal type and shielding requirement
Port size and connection thread
Rated rotating speed
Protection rating and working environment
Installation dimensions and mounting method
Low Torque: Starting torque as low as 0.01 N.m.
Rotational Torque: 5-10 times smaller than traditional pneumatic slip rings.
Maximum Speed: Up to 500 RPM,Lifespan: Over 20 million rotations.
Structural Design: Compact design capable of withstanding vacuum pressure from -100 kPa to 1 MPa.
Durability: Wear-resistant and corrosion-resistant materials ensure a long lifespan.Dual Protection: Features dual protection to
prevent air leakage.
Maintenance: Sealing components can be easily replaced and repaired, reducing costs.
Customization: Can simultaneously transmit power lines, signal lines, industrial buses, control lines, solenoid valves, and induction
lines, tailored to specific requirements.
Industrial automation systems
packaging equipment
chip mounting machines
robotic systems
testing apparatus
lithium battery production lines
high-end mobile phone assembly lines
laser systems
coating and separator machinery
packaging film equipment for soft pack
batteries
binding and laminating machines
electronic semiconductor manufacturing automation
1、Working Speed：Adjustable to meet specific operational requirements
2、Number and Position of Gas Passages：Customizable to accommodate varying gas transmission needs
3、Port Specifications and Pipe Size of Gas Passages：Tailored to fit specific connector types and pipe diameters
4、Pressure：Adjustable to support different pressure ranges as required
5、Rating Voltage：Configurable to operate within specific voltage ratings
6、Working Temperature：Customizable to withstand temperatures suited to operational environments
7、Transmitting Media：Supports various media such as compressed air, industrial gases, etc
8、Number of Circuits：Configurable from a minimum to maximum circuit requirement，Power and Signal Type：Supports integration
of power lines, signal lines, and different signal types.
9、Lead Length：Adjustable to accommodate varying distances between components.Connection Terminals：Customizable based
on connector types and interface specifications.Housing Material and Color：Options available for selecting suitable materials
and colors.
If the standard configuration does not fully match your application, send us the fluid passages, medium, pressure, electrical circuits, current, voltage, signal type, speed, connection method, installation dimensions, and operating environment. Our engineering team can recommend a suitable integrated rotary solution or develop a customized design.
Get a Quote
Download Datasheet
Request Drawing / 3D Model
