Maintaining Power, Video and Data Connections During Rotation

Surveillance equipment is increasingly installed on platforms that rotate to monitor a wide area. Examples include pan-tilt-zoom (PTZ) cameras, monitoring towers, rotating camera platforms and intelligent security systems. These systems may need to maintain power, video, control and data connections while the camera or monitoring unit turns.

A conventional cable connection can become a limitation when a component rotates repeatedly or continuously. Cable twisting, restricted rotation and wear can complicate equipment design and maintenance. A slip ring provides a rotary interface between stationary and rotating components, allowing selected power and signal circuits to pass across the rotating joint.

For rotating surveillance applications, the appropriate solution depends on the video interface, data rate, power requirements, rotation conditions, installation space and operating environment. These requirements should be reviewed together rather than selecting a slip ring by size alone.

Where Are Slip Rings Used in Rotating Surveillance?

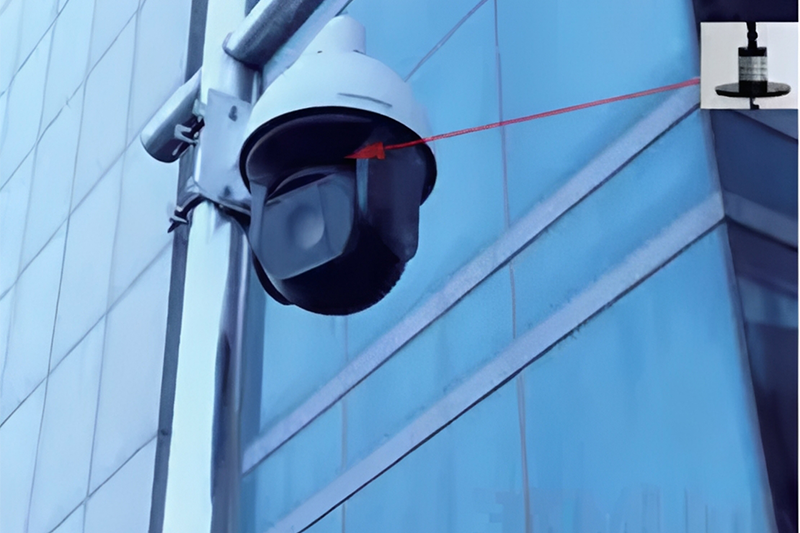

PTZ surveillance cameras that pan and tilt to cover different viewing directions.

Monitoring towers and rotating camera platforms used for site or perimeter monitoring.

Intelligent surveillance systems that combine cameras with control, positioning or monitoring functions.

Thermal imaging or other specialist monitoring equipment where the camera assembly rotates.

Systems that combine video transmission with power, control signals or other data connections.

What Needs to Be Transmitted?

Depending on the equipment design, a rotating surveillance unit may require:

Electrical power for the camera, rotating assembly or associated components.

Video signals, including the specific analog, HD or other video interface used by the system.

Control signals for pan, tilt, positioning, zoom or other functions.

Communication and data channels used by the camera or monitoring equipment.

Optical data transmission when fiber optics are used for high-bandwidth communication or immunity to electromagnetic interference.

Where electrical power and signals must cross the rotating interface together, an electrical slip ring may be considered. If the system uses high-frequency or high-definition video, an RF/HD slip ring may be relevant. For designs requiring optical data transmission alongside electrical circuits, an electro-optical slip ring can be evaluated. Interface compatibility and performance must be confirmed for the actual equipment.

Key Factors When Selecting a Surveillance Slip Ring

1. Video and Data Interface

Confirm the video format or interface, signal frequency or data rate where applicable, number of channels, connector type and transmission-quality requirements. Do not assume that every slip ring supports every video protocol or resolution; compatibility should be checked for the selected configuration.

2. Power and Control Circuits

Specify the number of power circuits, rated voltage and current, and the types and quantities of control or communication signals. If power and video/data channels operate simultaneously, state this clearly so the combined transmission arrangement can be evaluated.

3. Rotation and Mechanical Integration

Provide the required rotation mode, speed, installation dimensions, mounting method, shaft or housing constraints, cable routing and connector orientation. Mechanical drawings or photographs can help engineers assess the available space and interface.

4. Operating Environment

Describe the expected temperature range, indoor or outdoor installation, exposure to dust or moisture, vibration and required ingress protection. These conditions can affect housing, sealing, cable and customization choices. Environmental capabilities should be confirmed for the selected product.

Information to Prepare for Technical Evaluation

Providing these details at the quotation stage helps the engineering team evaluate the required transmission channels, mechanical structure and possible integration options more accurately.

HISCIENCE Slip Ring Solutions for Rotating Surveillance

HISCIENCE provides slip ring solutions for security and surveillance equipment, including PTZ cameras, monitoring towers and intelligent surveillance platforms. Depending on the system design, the solution can be evaluated for power, video, control and data transmission across a rotating interface.

For applications requiring high-frequency or high-definition signal transmission, HISCIENCE RF/HD slip ring solutions may be considered. Where a system needs optical data transmission together with electrical power or signals, an electro-optical configuration may also be evaluated. Final compatibility, performance and configuration should be confirmed for the specific application.

Learn more about the Security & Surveillance Systems

Discuss Your Rotating Surveillance Application with HISCIENCE

Selecting a suitable slip ring starts with understanding the video and data interface, power and control circuits, mechanical integration and operating environment. Share your application details and relevant drawings with HISCIENCE to help the team assess a suitable rotary transmission solution for your equipment.
