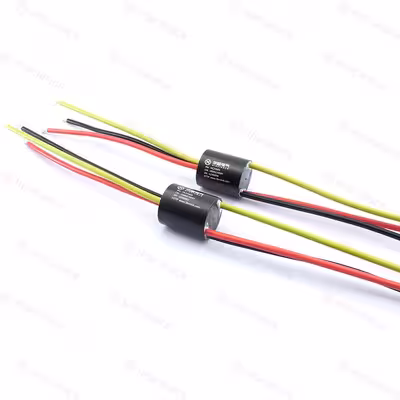

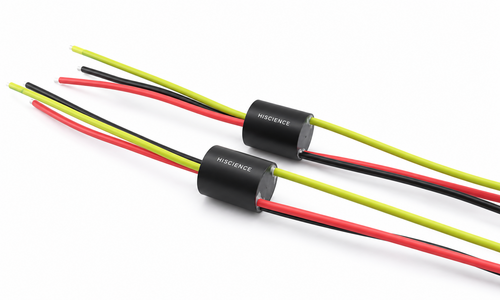

HC25603 Electrical Slip Ring

product details

Description

Hiscience's Electrical Slip Rings utilize advanced brush-type technology. The contact components feature a triple-hardened, ultra-hard gold surface treatment technology, which surpasses the international military connector standards in hardness, strength, wear resistance, and conductivity. The ring surface is exceptionally smooth, with a surface roughness of ≤Ra0.4. Each signal path is meticulously designed to prevent signal loss during high-speed rotation.

Specifications

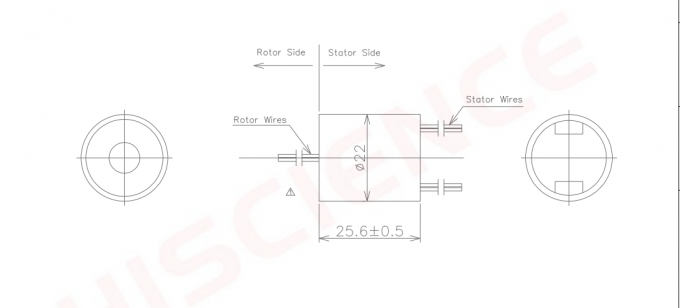

Drawing

Product Selection Guide

To select the suitable HC25603 Electrical Slip Ring, please confirm the following requirements:

• Power, signal, data, fiber-optic, or fluid transmission requirements

• Circuit or channel count

• Current, voltage, signal, pressure, and flow requirements

• Rated rotating speed and expected service life

• Protection rating and operating environment

• Available installation space and mounting method

• Cable, connector, or port requirements

Key Features

• 1. Transmission Capabilities: Capable of transmitting both analog and digital signals

• 2. Mixed Transmission: Supports the mixed transmission of power and various signals, including:

• (1)、Ethernet：Rates of 10Mbps, 100Mbps, 1000Mbps

• (2)、Industrial Ethernet: EtherNet, EtherCAT, ProfiNet, Powerlink, SercosIII/IP, etc

• (3)、High-Definition Video: SDI, LVDS, etc

• (4)、Serial Communication: RS232, RS485, RS422, etc

• (5)、Universal Serial Bus: USB 2.0

• (6)、Industrial Fieldbus: CANBus, ProfiBus, InterBus, CC-Link, DeviceNet, etc

• (7)、Sensor Signals: Thermocouples, RTDs, Strain Gauges, etc

• 3. Designed primarily for pneumatic and hydraulic media transmission or for mounting on rotating motor shafts.

• 4. Featuring advanced precious metal brush multi-point contact technology, ensuring reliable electrical connection under extremely low friction.

• 5. Durability: Exceptionally long lifetime, maintenance-free

• 6. Ease of Installation: Easy to install

Main Applications

• Robots

• Industrial automation equipment

• Medical equipment

• Test equipment

• Exhibition/Display equipment

• Packaging machinery

• Turntable equipment

• Amusement equipment

• High-speed railway equipment

• Marine & offshore equipment

• Construction machinery

• Wind power equipment

Customizable Options

• 1. The center through-bore options range from 0 to 1000 mm, with current capacities from 0 to 5000A. The voltage capacity can reach up to 10000V.

• 2. Working Temperature：Standard range: -30℃~+70℃, Custom range: -60℃～+200℃

• 3. Working Speed：Standard: 0~300RPM, Customizable: up to 0 ~ 20000 RPM

• 4. Reference Lifetime：Standard: 20 million revolutions @ 300RPM, Extended lifetime slip rings available upon request

• 5. Housing Material：Options include engineering plastics, aluminum alloy, and stainless steel

• 6. IP Grade： Standard: IP51, Customizable: up to IP68

• 7. Type of Connectors and Length：Various connector types and lengths available upon request

• 8. Integration Capabilities：Can be integrated with pneumatic, hydraulic, RF, and fiber optic rotary joints

• 9. Signal Support：Supports simultaneous transmission of multiple signals, including industrial Ethernet, serial, industrial bus, USB, SDI, etc.
