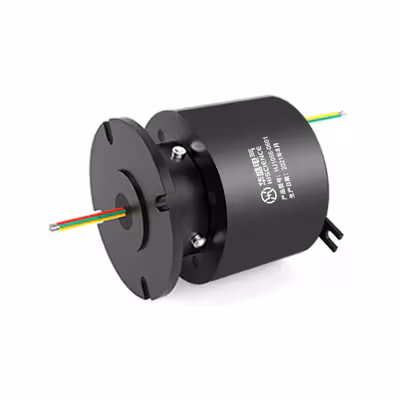

HST30-P08-S20-G02 Electrical Slip Ring

product details

Description

Hiscience's Electrical Slip Rings utilize advanced brush-type technology. The contact components feature a triple-hardened, ultra-hard gold surface treatment technology, which surpasses the international military connector standards in hardness, strength, wear resistance, and conductivity. The ring surface is exceptionally smooth, with a surface roughness of ≤Ra0.4. Each signal path is meticulously designed to prevent signal loss during high-speed rotation.

Specifications

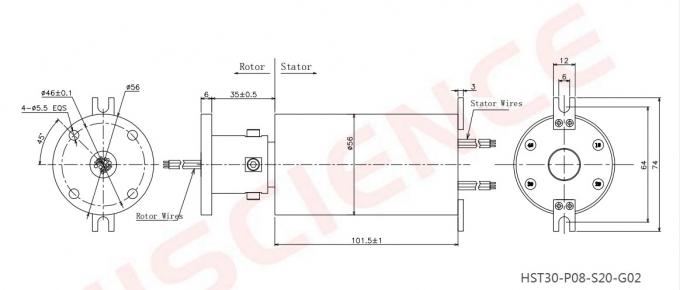

Drawing

Product Selection Guide

To select the suitable HST30-P08-S20-G02 Electrical Slip Ring, please confirm the following requirements:

• Power, signal, data, fiber-optic, or fluid transmission requirements

• Circuit or channel count

• Current, voltage, signal, pressure, and flow requirements

• Rated rotating speed and expected service life

• Protection rating and operating environment

• Available installation space and mounting method

• Cable, connector, or port requirements

Key Features

• 1. Transmission Capabilities: Capable of transmitting both analog and digital signals

• 2. Mixed Transmission: Supports the mixed transmission of power and various signals, including:

• (1)、Ethernet：Rates of 10Mbps, 100Mbps, 1000Mbps

• (2)、Industrial Ethernet: EtherNet, EtherCAT, ProfiNet, Powerlink, SercosIII/IP, etc

• (3)、High-Definition Video: SDI, LVDS, etc

• (4)、Serial Communication: RS232, RS485, RS422, etc

• (5)、Universal Serial Bus: USB 2.0

• (6)、Industrial Fieldbus: CANBus, ProfiBus, InterBus, CC-Link, DeviceNet, etc

• (7)、Sensor Signals: Thermocouples, RTDs, Strain Gauges, etc

• 3. Designed primarily for pneumatic and hydraulic media transmission or for mounting on rotating motor shafts.

• 4. Featuring advanced precious metal brush multi-point contact technology, ensuring reliable electrical connection under extremely low friction.

• 5. Durability: Exceptionally long lifetime, maintenance-free

• 6. Ease of Installation: Easy to install

Main Applications

• Robots

• Industrial automation equipment

• Medical equipment

• Test equipment

• Exhibition/Display equipment

• Packaging machinery

• Turntable equipment

• Amusement equipment

• High-speed railway equipment

• Marine & offshore equipment

• Construction machinery

• Wind power equipment

Customizable Options

• 1. The center through-bore options range from 0 to 1000 mm, with current capacities from 0 to 5000A. The voltage capacity can reach up to 10000V.

• 2. Working Temperature：Standard range: -30℃~+70℃, Custom range: -60℃～+200℃

• 3. Working Speed：Standard: 0~300RPM, Customizable: up to 0 ~ 20000 RPM

• 4. Reference Lifetime：Standard: 20 million revolutions @ 300RPM, Extended lifetime slip rings available upon request

• 5. Housing Material：Options include engineering plastics, aluminum alloy, and stainless steel

• 6. IP Grade： Standard: IP51, Customizable: up to IP68

• 7. Type of Connectors and Length：Various connector types and lengths available upon request

• 8. Integration Capabilities：Can be integrated with pneumatic, hydraulic, RF, and fiber optic rotary joints

• 9. Signal Support：Supports simultaneous transmission of multiple signals, including industrial Ethernet, serial, industrial bus, USB, SDI, etc.

Need Customization?

Send us your complete rotary-transmission requirements, including the media to be transmitted, circuit or channel count, electrical and fluid parameters, speed, environment, installation space, and connection method. Our engineering team can evaluate the application and develop a project-specific solution.
