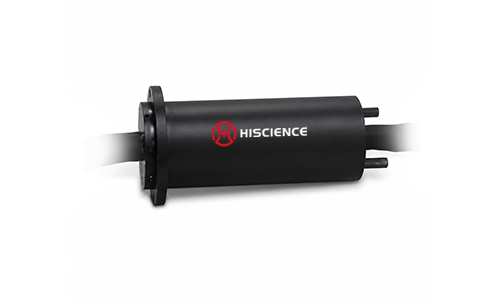

The HC440F1-2805-1302-2S01 industrial bus slip ring is designed for equipment that requires continuous 360° rotation while transmitting industrial bus signals, power, and other mixed electrical signals between stationary and rotating parts.
This model supports 43 circuits, with 2A and 5A current transmission options and a voltage rating of 0–240V. It can support industrial communication protocols such as Profibus, CANBus, CANopen, DeviceNet, CC-Link, PROFINET, and EtherCAT.
It can also be customized for mixed transmission of Ethernet, USB, RS232, RS485, digital or analog video, digital audio, temperature signals, sensor signals, encoder signals, and power lines.
With precious metal contacts and internal shielding options, this series is suitable for automation systems requiring stable communication, reliable signal transmission, and continuous electrical connection during rotation.
| Item | Specification |
|---|---|
| Product Type | Industrial Bus Slip Ring |
| Model | HC440F1-2805-1302-2S01 |
| Circuits | 43 circuits |
| Voltage | 0–240V |
| Current | 2A / 5A |
| Transmission Type | Power / Industrial Bus / Signal |
| Working Speed | 0–300RPM |
| Contact Material | Precious Metal |
| Lead Wire Length | Stator / Rotor: 300mm |
| Protection Grade | IP51 |
| Insulation Resistance | ≥500MΩ@500VDC |
| Supported Protocols | Profibus, CANBus, CANopen, DeviceNet, CC-Link, PROFINET, EtherCAT |
| Custom Options | Power circuits, signal type, bus protocol, connector, cable length, shielding, working environment |
To select a suitable industrial bus slip ring, please confirm the following information:
Required bus protocol, such as PROFINET, EtherCAT, CANBus, Profibus, etc.
Number of circuits
Current and voltage requirements
Signal type, such as Ethernet, USB, RS232, RS485, encoder signal, sensor signal, etc.
Network or data transmission rate requirements
Working speed
Installation space
Connector type, such as aviation connector, terminal, or customized connector
Cable length requirements
Working environment and protection grade
Whether pneumatic, hydraulic, RF, or fiber optic integration is required
If you are not sure which model is suitable, please send us your bus protocol, circuit requirements, current, voltage, connector type, and application details. Our engineers can help recommend a suitable industrial bus slip ring solution.
Supports industrial bus signal transmission during continuous 360° rotation
Compatible with Profibus, CANBus, CANopen, DeviceNet, CC-Link, PROFINET, EtherCAT, and other protocols
Supports mixed transmission of power, industrial bus signals, sensor signals, and control signals
43-circuit design for multi-line transmission requirements
Supports 2A and 5A current transmission options
Internal shielding design can be customized to improve anti-interference performance
Designed for high-speed data transmission and stable communication
Precious metal contact design supports reliable electrical performance
Suitable for automation systems requiring stable data and power transmission
Customizable cable length, connector type, signal type, circuit number, and protection grade
| Application | Typical Use |
|---|---|
| Robots | Supports power, encoder, and industrial communication signal transmission in rotating joints |
| Industrial Automation Equipment | Used for power and bus signal transmission in automated rotating systems |
| Test Equipment | Maintains stable signal transmission in rotating test platforms |
| Packaging Machinery | Transfers power, control, and bus signals in rotating mechanisms |
| Rotary Tables | Provides continuous electrical and data transmission during rotation |
| Servo Systems | Supports servo power lines, encoder cables, and control signals |
| Exhibition / Display Equipment | Used in rotating display platforms requiring stable communication |
| Marine & Offshore Equipment | Suitable for rotating systems requiring reliable signal and power transfer |
| Construction Machinery | Used in rotating equipment with mixed power and signal transmission needs |
| Wind Power Equipment | Supports rotating systems requiring power and communication transmission |
Number of circuits
Current capacity
Voltage rating
Bus protocol
Ethernet / USB / RS232 / RS485 signal transmission
Encoder signal transmission
Sensor signal transmission
Temperature or thermocouple signal transmission
Cable length
Connector type
Internal shielding structure
Protection grade
Vibration-resistant or high-temperature design
Integration with pneumatic or hydraulic rotary unions
If the standard model does not meet your requirements, please send us your application details, including bus protocol, circuit number, current, voltage, signal type, data rate, connector type, installation space, working speed, and operating environment.
Our engineers can help confirm the suitable model or provide a customized industrial bus slip ring solution according to your equipment requirements.
